Equine Hyperbaric Oxygen Chamber Manufacturer

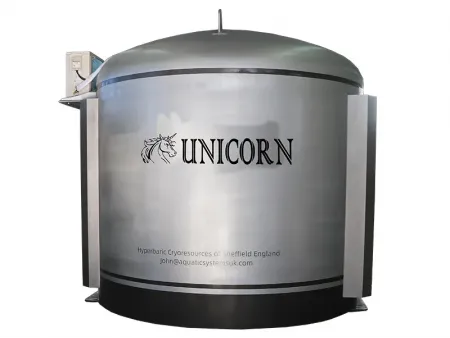

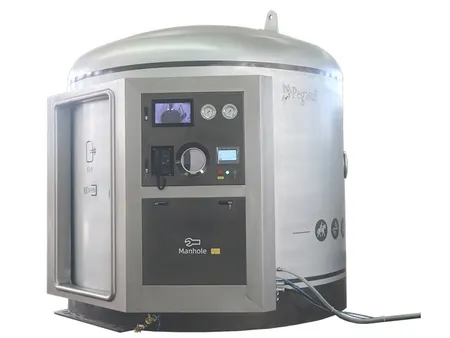

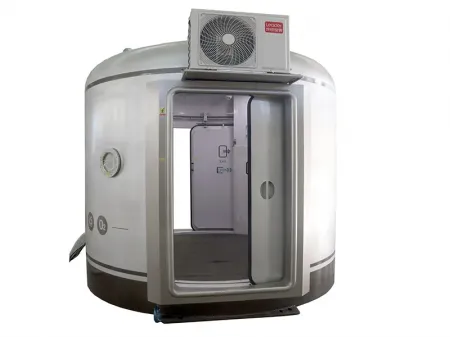

Equine Hyperbaric Oxygen Chamber

Request a Quote

View All: http://hbotchamber-en.com/5-3-equine-hyperbaric-oxygen-chamber.html

HYPERBARIC OXYGEN THERAPY FOR ANIMALS

Hyperbaric chamber for accelerating healing and enhancing rehabilitation for horses

Maximum working pressure50kPa (1.5ATA)
Applicable animalEquine/horse

Used in veterinary clinics and training centers, equine hyperbaric oxygen chambers help improve oxygen saturation in the blood, supporting tissue repair and speeding up recovery from injuries or surgery. Horses benefit from enhanced circulation, reduced inflammation, and better immune response, all without invasive treatment.

This type of therapy can also contribute to greater endurance and faster recovery between training sessions. Whether used for performance maintenance or medical rehabilitation, hyperbaric oxygen chambers offer a safe, effective way to keep horses healthy and strong.

Applications

Equine hyperbaric oxygen chambers are widely used in racetracks, equestrian clubs, and recovery centers to help horses regain strength, improve endurance, and recover from injuries more efficiently. This therapy supports faster healing, making it a valuable tool for both competitive and therapeutic environments.

Specifications

External dimensions (L×W×H)	3200×3080×3000mm
Internal dimensions (D×H)	Ø2600×2050mm
Power supply	AC 220V±10%, 50Hz
Total power	≤10kW
Gross weight	4700kg
Air conditioner	Equipped
Control panel	Equipped both inside and outside
Maximum working pressure	50kPa (1.5ATA)
Door	2 sliding doors
Observation window	2pcs
Floor	Rubber floor, 5mm thick, movable
Chamber capacity	1 horse per treatment
Apparatus cabinet dimensions (L×W×H)	2100×990×2100mm
Air compressor	10pcs×800W
Oxygen generator	2pcs×10L
Oxygen concentration rate	93±3%

Features

A built-in monitoring system allows caretakers to observe the horse’s condition in real time during therapy.

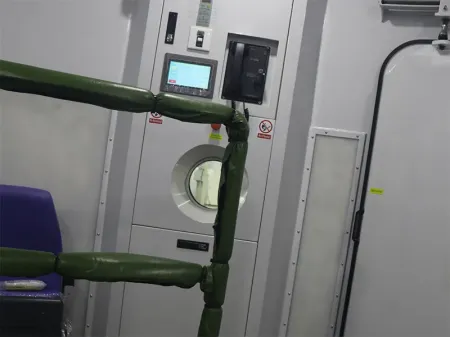

Control panels are located both inside and outside the chamber, allowing for easy access and smooth operation from either side.

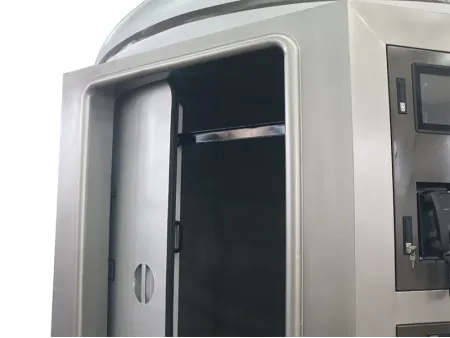

Sliding doors at the front and rear provide safe, convenient entry and exit for the horse, minimizing stress during loading and unloading.

Optional Features & Customization

Pressure levels can be adjusted according to treatment needs.
Exterior appearance, including color and design, can be customized.
Additional features or upgrades can be added based on specific veterinary or facility requirements.

How long is the warranty?

We offer a one-year warranty that covers the entire hyperbaric unit from the date of delivery.

What should I know about installation and support?

The hyperbaric chamber is delivered fully assembled. Installation simply requires connecting the pipelines as shown in the manual, no complex setup needed. Support is available online, and if any components are damaged, we’ll provide replacements free of charge during the warranty period. After the warranty expires, clients only cover the cost of parts and shipping.
