Longitudinal Seam Welding Machine
SWM-500
Straight seam welder for welding steel duct pipes or metal housings of electrical appliances
SWM-500
Straight seam welder for welding steel duct pipes or metal housings of electrical appliances

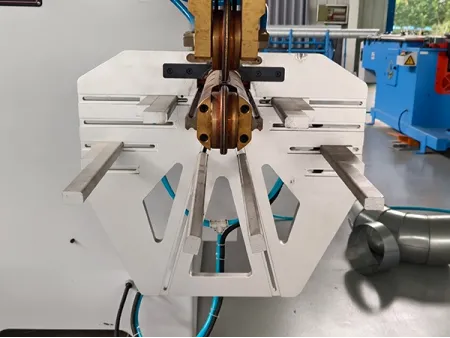

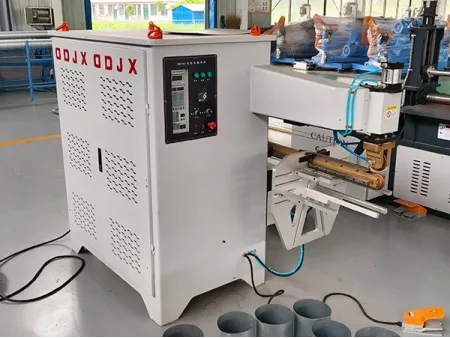

The SWM-500 longitudinal seam welding machine is a duct fittings fabrication machine specially designed for straight seam welding of duct pipes, excelling at processing 0.4-0.8mm galvanized steel and stainless steel materials. It meets the high requirements for welding quality and appearance in industries like ventilation ducting, household appliances, and hardware products. The duct welding machine is stable, reliable, and accepts customized specifications, offering an efficient and practical welding solution.
The SWM-500 longitudinal seam welding machine is suitable for straight seam welding of galvanized and stainless steel ducts in ventilation and air conditioning systems, and also ideal for welding metal housings of household appliances.
- This longitudinal seam welding machine supports welding of multiple metals, including galvanized steel (0.4-0.8mm) and stainless steel (0.4-1.0mm).
- Wire feeding speed is adjustable from 6-12m/min, and output voltage has 6 adjustable levels, adapting to various thickness and process requirements.
- 40% load duration and 40kVA welding capacity ensure continuous, long-term welding without shutdown.
- Minimum welding diameter is 125mm, expanding the application scope for duct pipe component welding.
- Customized lengths and specifications are available based on user needs, adapting to diverse production tasks.
- Input voltageThree-phase 380V ±10%
- Rated welding capacity40kVA
- Rated load duration40%
- Wire feeding speed6.0-12m/min
- Wire diameter2.0-2.2mm
- Secondary output voltage1.6-3.2V (at maximum controller energy)
- Secondary voltage adjustment levels6 levels
- Min. welding workpiece diameter125mm
- Max. welding workpiece length500mm (special specifications are customizable)
- Welding workpiece materialGalvanized steel or stainless steel
- Thickness range (Galvanized steel)0.4-0.8mm
- Thickness range (Stainless steel)0.4-1.0mm
- Motor speed control methodAC electromagnetic motor
- Machine dimensions (L×W×H)2200×1100×1600mm
- Machine weight650kg
