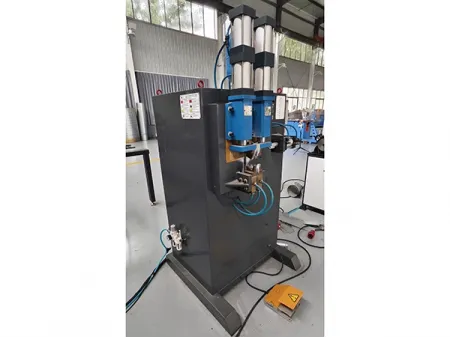

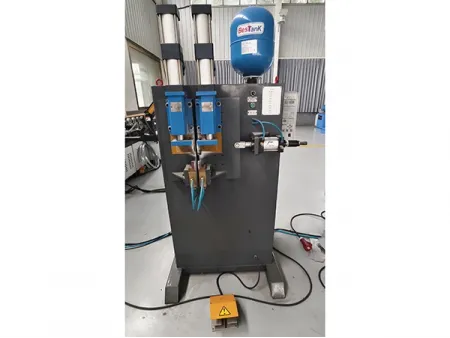

Round Angle Flange Butt Welding Machine
Request a Quote
DH-100
Automatic welding machine for joining round duct flanges
DH-100
Automatic welding machine for joining round duct flanges
The DH-100 angle flange butt welding machine is simple to operate, safe, and highly efficient. It uses an internal gas tank to compensate for air pressure loss, ensuring excellent stability. It is specifically designed for welding steel angle flanges. It can be paired with our company's round angle flange forming machine for welding duct flanges after they are rolled.
Applications
The round angle flange butt welding machine is specialized for butt circumferential welding of steel round angle flanges, making it a key piece of duct parts fabrication equipment in the air duct production line.
Features
- The built-in gas tank automatically compensates for air pressure fluctuations, ensuring constant welding pressure and preventing welding defects caused by unstable air pressure.
- The 100kVA rated capacity and 50% load duration, capable of welding low carbon steel angle steel with a cross-sectional area up to 800mm², provide strong power for high-intensity operation.
Specifications
- Rated capacity100kVA
- Working voltage380V/2Ph/50Hz
- Rated welding cross-section800mm² (low carbon steel)
- Load duration50%
- Machine dimensions90×95×190cm
- Machine weight455kg
