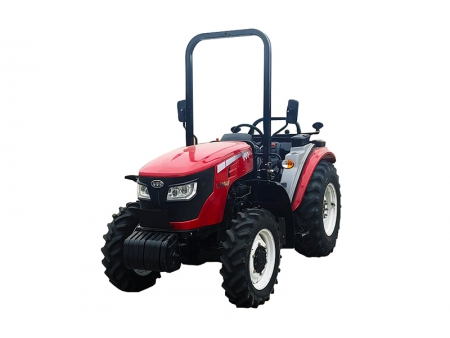

Narrow Tractor / Orchard Tractor, 85-115HP
Request a Quote
YTO-NLX854F/ NLX904F/ NLX954F/ NLX1054F/ NLX1104F/ NLX1154F
Features
- Designed with a compact structure suitable for orchard and narrow-area operations, with optional ROPS structure for improved safety and passability.
- Powered by YTO diesel engines featuring low vibration, strong power, and low fuel consumption.
- Standard 12F/4R gearing, with optional 12F/12R or 24F/8R configurations to suit various tasks. A synchronized main gearbox is also available for smoother shifting.
- An independent dual-action clutch allows separate control of travel and the Power Take-Off (PTO), significantly boosting operational efficiency.
- Equipped with hydrostatic power steering for exceptionally light and flexible handling.
- Hydraulic wet disc brakes provide reliable stopping power with minimal operator effort.

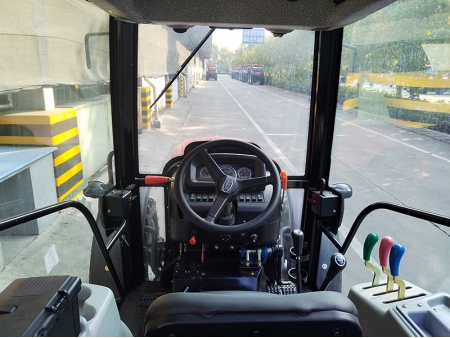

- The four-post cab offers excellent all-around visibility. For improved comfort, air conditioning and a heating system are available as options.
- Mid-mounted ROPS (Roll-Over Protective Structure)
- Wide field of view
- Engineered plastic interior for comfortable operation
- 3 rear hydraulic outlets 2 front hydraulic outlets
Specifications
| Model | ||||||
| Engine type | 4 cylinder, naturally aspirated diesel engine | 4 cylinder, turbocharged & intercooled CRDi diesel engine | ||||
| Rated engine HP (kW) | 62.5(85) | 66.2(90) | 70(95) | 77.2(105) | 81(110) | 84.5(115) |
| Engine speed (rpm) | 2300/2200 | 2200 | ||||
| Clutch | Single/double action | |||||
| Gears | 12F/4R, 12F/12R, 24F/8R | |||||
| Speed range (km/h) | 1.73-28.8 | |||||
| Brake | Wet, disc | |||||
| Rear PTO (rpm) | 540/1000 | |||||
| Lift capacity (pivot point) (KN) | ≥23 | |||||
| Hydraulic outputs (set) | 3 | |||||
| Dimensions (L*W*H) (mm) | 4165*1580*2350 (Cab) /2530 (ROPS) | |||||
| Wheelbase (mm) | 2184 | |||||
| Ground clearance (mm) | 300 | |||||
| Track width (F/R) (mm) | 1260/1150 | |||||
| Min. turning radius (m) | ≤3.5 | |||||
| Tyre (F/R) | 9.5-20/14.9-24 | |||||
| Total mass (kg) | 3422 (Cab) /3222 (ROPS) | |||||
