4 inch/8 inch Gasoline Water Pump Manufacturer

4 inch/8 inch Gasoline Water Pump

Request a Quote

Website: http://db-dieselgenerators.com/5-5-gasoline-water-pump.html

Features

High-efficiency self-priming pump
The gasoline water pump employs a sophisticated single-stage centrifugal self-priming design, constructed from high-strength, corrosion-resistant materials. It provides high head, large flow capacity, and dependable performance, suitable for rapid water suction and removal.

Prolonged operational duration
The bigger fuel tank ensures extended operational runtime, reducing the frequency of refueling and improving field productivity.

Faster water drainage
The pump features oversized inlet and outlet ports, facilitating faster water intake and discharge, thereby enhancing drainage efficiency during both emergency and routine operations.

Mobility and reduced labor
Equipped with lockable universal wheels and a braking system, the gasoline water pump is designed for improved mobility and repositioning, even on uneven terrain or at emergency sites.

Specifications

Model	DB-WP-100 4 inch Gasoline Water Pump	DB-WP-200 8 inch Gasoline Water Pump
Pump Type	Single-stage centrifugal drainage pump and four-stroke twin-cylinder air-cooled engine
Engine Model	DH740	DH740
Engine Power (kW)	15	15
Max. Revolution (rpm)	3600	3600

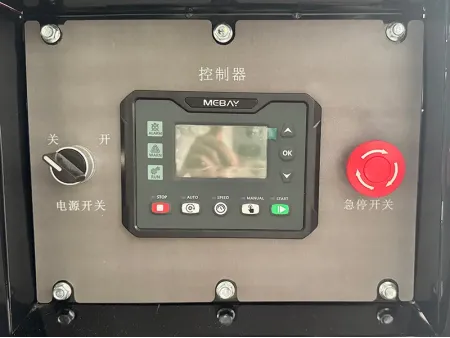

Controller	2.8-inch/ 240×128 LCD HD-display screen
Max. Head Lift (m)	25	20
Max. Discharge Capacity (m³/h)	150	240
Max. Suction (m)	7	2
Suction Time (s)	180	180
In-port Diameter (mm)	100	200
Out-port Diameter (mm)	100	200
Controller Type	LCD HD-display screen	LCD HD-display screen
Fuel Tank (L)	30	30
Engine Type	4-stroke, air-cooled	4-stroke, air-cooled
Battery	Maintenance-free battery	Maintenance-free battery
Unit Details	1 unit of water pump, 1 bottle of engine oil, 1 set of tools, 1 quality certificate, 1 package box
Dimension (L×W×H) (mm)	892×732×892	1152×732×1002
Weight (kg)	145	165
