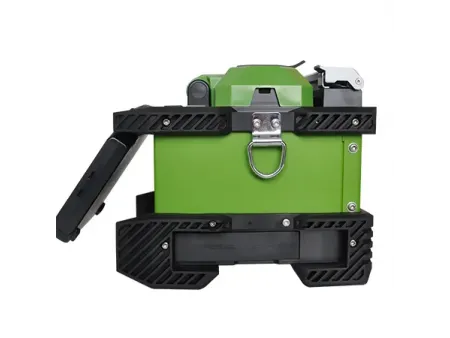

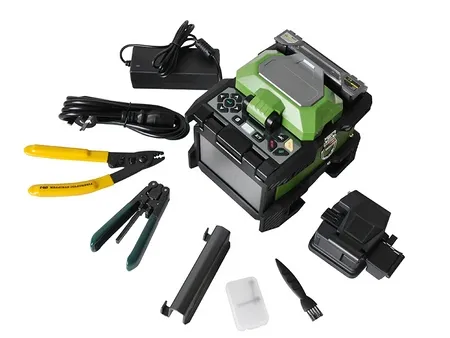

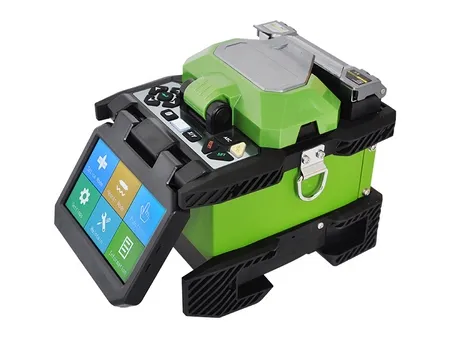

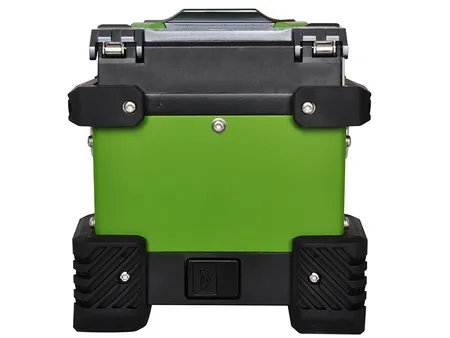

JW4106S Optical Fusion Splicer with 4.3-inch LCD Touch Screen

JW4106S

Our fusion splicers are designed to enhance fiber splicing processes with fast operation and high precision. It completes splicing in just 7 seconds and heat shrinking in 18 seconds, significantly reducing the time required for these tasks. Featuring a high-resolution fiber microscope and imported high-speed motors, it ensures accurate alignment for reliable connections. The use of aluminum-magnesium alloy materials provides durability while keeping the fusion splicer lightweight and compact, making it suitable for both fieldwork and laboratory environments.

Features

Ultra-low splicing loss achieved through precise core alignment.
Quick splicing completed in 7 seconds, with heat shrinking done in 18 seconds.
High magnification of up to 320x and capability to splice fibers as short as 5mm.
Flexible operation with 300 splicing modes and 100 heating modes.
Stores 10,000 splicing records and up to 64 images for detailed tracking and analysis.
Includes ceramic pressure pads, a ceramic V groove, and a multi-functional fiber holder for stable and secure handling.
Supports bi-directional splicing, automatic operation, and intelligent heat shrinking for added convenience.
Compact and lightweight design ensures easy portability for on-site work.
USB and SD card interfaces allow for data transfer and easy software updates.
Built-in modular lithium battery supports at least 200 splicing and heating cycles per charge.

Specifications

Dimensions (W×H×D)	120×130×154mm (without rubber anti-vibration pad)
Weight	1.59kg (without battery) (battery weight: 0.38kg)
Fiber Alignment	Precise core alignment and cladding alignment
Applicable Fiber	Common optical fibers, rubber-insulated fibers and jumpers that meet requirements of ITU-TG.651/652/653/655/657
Fiber Diameter	Cladding: 80 to 150μm Coating: 0.1 to 3mm
Cutting Length	5 to 16mm (coated fiber diameter: ≤250μm)
Cutting Length	10mm (coated fiber diameter 0.25 to 3mm)
Typical Splice Loss	0.02dB (SMF), 0.01dB (MMF), 0.04dB (DSF), 0.04dB (NZDSF)
Return Loss	Better than 60dB
Lighting	Built-in lights with high-brightness and wide lighting area
Fusion Splicing Time	7 seconds
Heating Time	18 seconds (typical)
Storage	10000 groups, 64 images
Pulling Force Test	1.96 to 2.25N
Heat-Shrinkable Tube	60mm, 40mm, etc.
Operating Environment	Altitude: 0 to 6000m Relative humidity: 0 to 95% RH Temperature: -10 to 50℃
Display	High performance 4.3 inch LCD touch screen
Magnification	320times/88times
Power Supply	Input: AC100 to 240V, 60Hz, 0 to 1.5A Output: DC10 to 15V
Battery Life	300 to 500 charging cycles, can be replaced by user
Battery Capacity	11.1V, 6400mAh, (splicing and heating cycles: 220 times)
Electrode Life	4000 times (typical), can be replaced by user
Operation Interface	Graphical user interface (GUI)
External Interfaces	USB/SD
