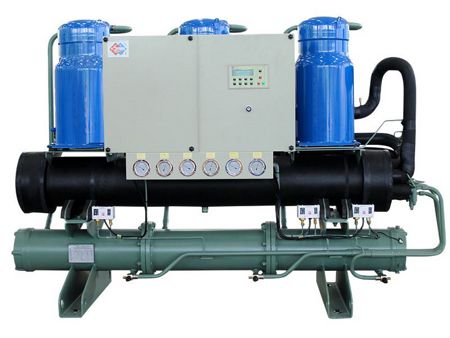

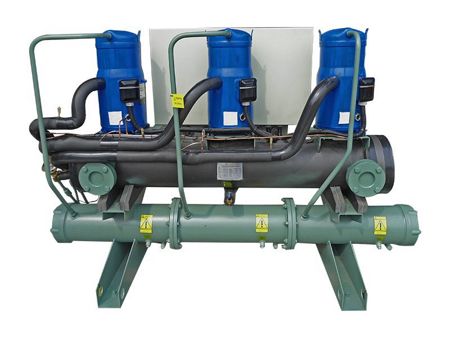

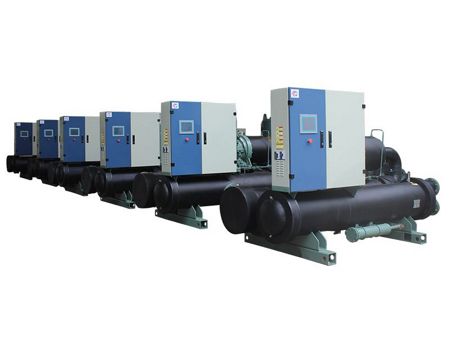

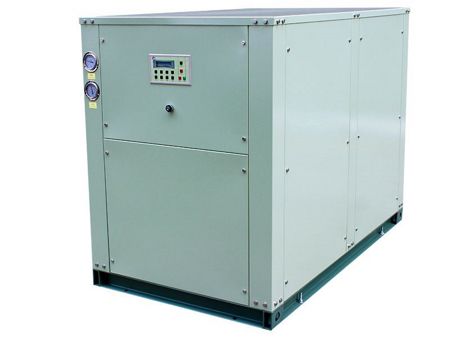

Modular Water Source Heat Pump
This modular water source heat pump machine has a wide range of applications, capable of yielding both cooling and heating functions. It's energy saving properties make it an ideal product for projects involving the withdrawal of water or ground source water. The capacity is vast: the cooling range is between 70kW and 200kW while the heating is between 90kW and 230kW with its outlet temperature of hot water reaching up to a maximum of 50°C. Its cool water temperature ranges from 5°C to 20°C. The module has the capacity to work with 8 units at once.
This water source heat pump module embraces sophisticated modular control technology. The interaction between the main unit and the others allows for a single control screen to be used for monitoring and managing the operation of multiple units. Each component also has individual autonomy, allowing for stand-alone operation.
Modular Water Source Heat Pump
Refrigerant: R410a
Power supply: 380V-3N-50Hz
| Model | Nominal cooling capacity | Nominal heating capacity | Compressor quantity | Chilled water | Groundwater | Noise level dB(A) | Shipping weight kg | Operating weight kg | ||||||
| Cooling capacity kW | Compressor power input kW | Heating capacity kW | Compressor power input kW | Pipe diameter (inlet/outlet) in | Water flow m3/h | Water pressure drop kPa | Pipe diameter (inlet/outlet) in | Water flow m3/h | Water pressure drop kPa | |||||
| | 74 | 13 | 87 | 19 | 2 | 2" | 13 | 28 | 2" | 16 | 56 | 68 | 490 | 560 |
| | 96 | 18 | 111 | 25 | 2 | 2-1/2" | 17 | 30 | 2-1/2" | 21 | 58 | 69 | 580 | 650 |
| | 148 | 26 | 174 | 38 | 4 | 2-1/2" | 25 | 33 | 3" | 32 | 60 | 70 | 980 | 1120 |
| | 192 | 36 | 222 | 50 | 4 | 2-1/2" | 33 | 35 | 3" | 41 | 61 | 71 | 1160 | 1300 |
Notes:
- 1. Rated cooling capacity standard: underground water inlet/outlet temperature 18℃ /29℃, chilled water inlet/outlet temperature 12℃ /7℃, fouling factor 0.088 ㎡•℃ /kW;
- 2. Chiller water minimum temperature: 5℃;
- 3. Rated heating capacity standard: underground water inlet temperature 15℃, hot water inlet temperature 40℃。 The outlet water temperature is determined by the water flow rate determined by the rated cooling condition;
- 4. Hot water maximum temperature: 50℃;
- 5. Available voltages: 220V, 380V, 400V, 415V, 440V, 460V
