COLO-1732
Features

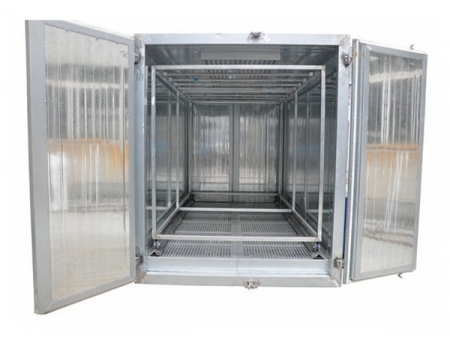

  • COLO-1732 electric powder coating oven is an economical and practical selection to get durable finish.
  • Adopting electricity as heating source features easier operation and maintenance
  • 3-meter length oven suits for curing bulky work parts or batch production.
  • The oven is shipped with fully assembled; before working, just need to connect the fan system and electricity.
  • Stable temperature and a wide range of adjustment of heating time make it useful for curing any kind of powder.
Specifications
Model COLO-1732
Operating dimensions 1650 width x 1700 height x 3200 depth mm
Overall dimensions 1950 width x 2100 height x 3500 depth mm
Power supply Electric, 48kW
Voltage 220V/380V
Frequency 50-60 Hz
Warm-up time 15-30min (180°C)
Temperature stability <± 3-5°C
Temperature Max.250°C
Motor power1.5 kW
Details

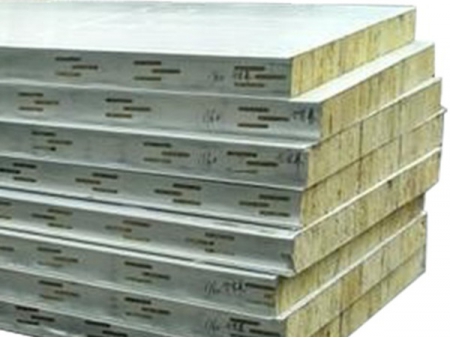

Oven Materials

  • 100mm rock wool board is inserted between galvanized inner wall and color-steel external skins.
  • The sandwich structure of oven wall prevents temperature dropping effectively.

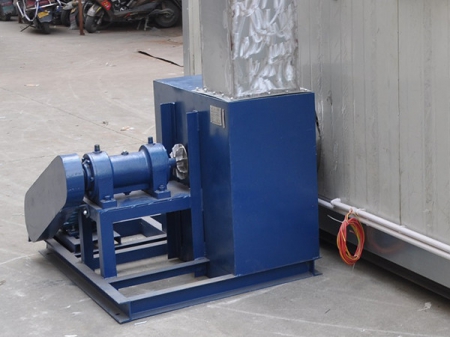

Circulation Fan

It cycles hot air in the oven chamber to ensure uniform heat distribution and minimal temperature difference, in order to obtain a quality finish with even gloss and consistent color.

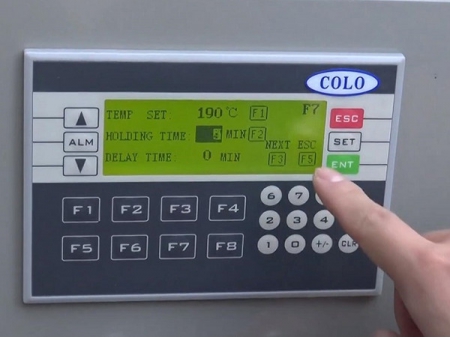

PLC Controller

  • Heat unit and circulation fan are controlled via the easy-to-use control panel.
  • Operator could accurately set the desired temperature, heating time and other parameters.

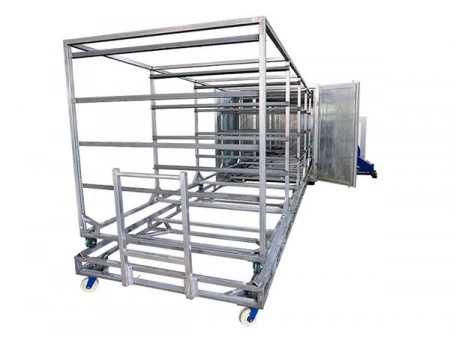

Transport System

  • Supplying with two trolleys ensures high purity painted elements.
  • Inner trolley moves across the hall that does not contaminate the inside of oven, while outer trolley loads the inner trolley for outside transportation.
  • Custom design is available to get an optimal use of the entire space of oven.
