Small Powder Coating Oven
Request a Quote

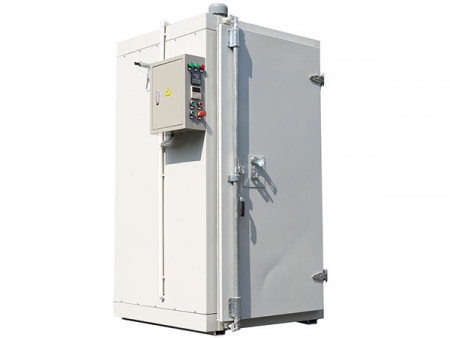

- COLO-1688 electric powder coating oven is a popular model with compact structure and affordable price.
- It suits for small batch production of alloy wheels, bike and motorcycle parts, etc.
- Heating by electricity reaches curing temperatures faster.
- Minimum operation cost is required.
- Built-in shelves for hanging objects, features more labor-saving in spraying process.
- Engineered with premium components to ensure the reliable quality and less maintenance.
| Model | COLO-1688 |
| Operating dimensions | 1000 width x 1600 height x 845 depth mm |
| Overall dimensions | 1400 width x 2200 height x 1100 depth mm |
| Power supply | Electric, 6.5kW |
| Voltage | 220V/380V |
| Frequency | 50-60 Hz |
| Warm-up time | 15-30min (180°C) |
| Temperature stability | <± 3-5°C |
| Temperature Max. | 250°C |
| Ventilation performance | 805-1677m3/h |
| Motor power | 0.55kW |
Oven Materials

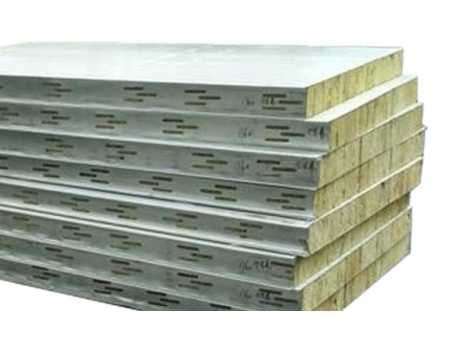

The oven wall panel features a sandwich structure including 100mm rock wool material, galvanized steel and color steel. This effectively minimizes temperature drop.
Circulation Fan

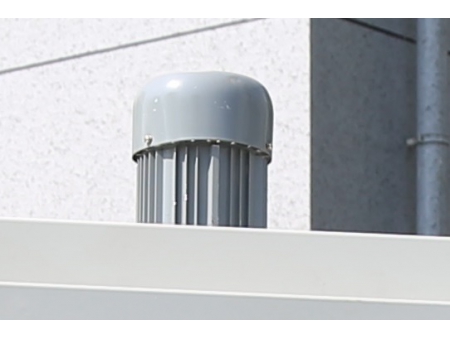

Circulation fan cycles hot air through the entire chamber, keeps uniform temperature for consistent and even powder coating finish.
Control Panel

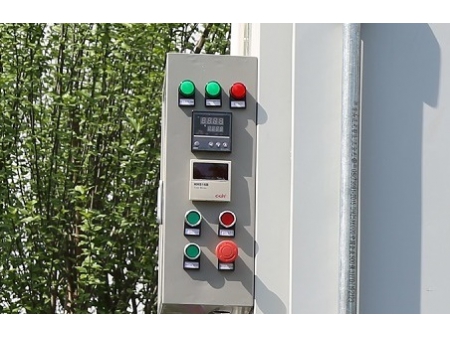

- Heat unit and circulation fan are controlled via an easy-to-use control panel.
- Allows to set precise temperature and curing time as well as shows actual temperature inside the oven.
