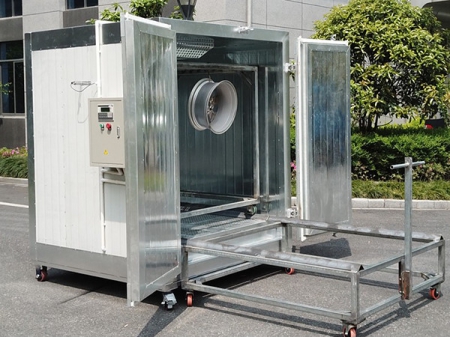

COLO-1864
Features
  • COLO-1864 electric powder coating oven is a hot-selling model with excellent performance and high efficiency.
  • Heating by electricity provides high-quality and long-lasting powder finish in shorter curing time.
  • With operating dimensions of 1.6x1.8x1.4m, it suits for batch production of small and medium sized parts, including alloy wheels, bike and motorcycle parts.
  • This curing oven is pre-assembled to deliver, allowing a quick access to powder curing jobs.
  • Built with premium components to ensure the reliable quality and maximize the service life.
Specifications
Model COLO-1864
Operating dimensions 1600 width x 1800 height x 1400 depth mm
Overall dimensions 1900 width x 2200 height x 1700 depth mm
Power supply Electric, 18kW
Voltage 220V/380V
Frequency 50-60 Hz
Warm-up time 15-30min (180°C)
Temperature stability <± 3-5°C
Temperature Max.250°C
Ventilation performance805-1677m3/h
Motor power0.75kW
Details

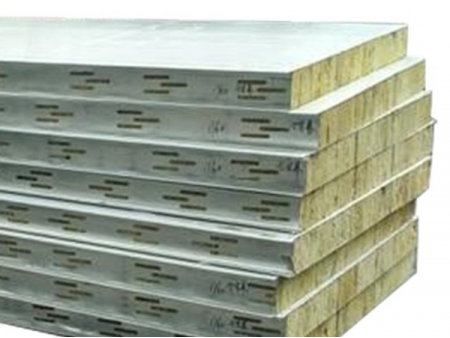

Oven Materials

  • Oven wall is designed with sandwich structure for best insulation possible.
  • 100mm rock wool board is inserted between galvanized inner wall and color-steel external skins, effectively minimizing temperature dropping.

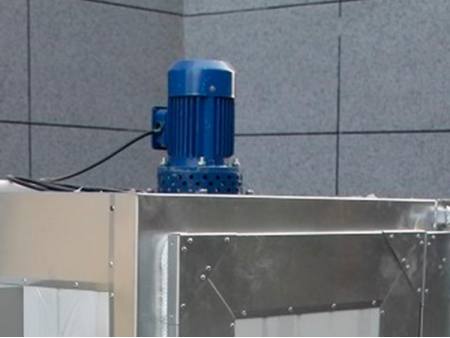

Circulation Fan

Engineered with a circulation fan to cycle hot air through the entire chamber and provides consistent and even powder coating finish.

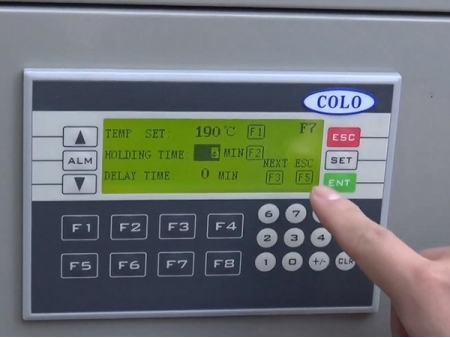

PLC Controller

A simple-operation PLC controller achieves high-precision heating process. Operator could accurately set the desired temperature, heating time and other parameters.

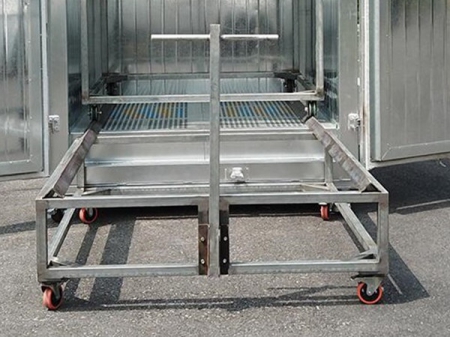

Transport System

  • Supply with two trolleys for easy carrying and loading.
  • Outer trolley carries inner trolley and objects for outside transportation.
  • Inner trolley carries objects and does not contaminate the oven chamber, ensuring high purity of powder coated elements.
