Aluminum-Plastic Composite Film

Designed for exceptional barrier protection, Aluminum-Plastic Composite Film (V4) is a high-performance composite. Excellent water vapor and oxygen barrier qualities make this film perfect for use in demanding uses such food vacuum packaging, refrigerator VIP insulation, and energy-saving building materials.

This film is a dependable choice for industrial packaging and other specialist usage since it offers great weather resistance and can endure low temperatures, freezing, refrigeration, and transportation. It offers food preservation traits in addition to durability and environmentally beneficial insulation.

What the Features of Aluminum-Plastic Composite Film

Superior Barrier Properties: Excellent water vapor and oxygen protection for packaging and insulation.
Versatile Applications: Ideal for VIP insulation, food packaging, and energy-saving building materials.
Weather Resistance: Withstands low-temperature freezing, refrigeration, and transportation for reliable performance.

Specifications

ltem	Thickness (μm)	Width (mm)	Length (m)	Total Solvent Residue (mg/m²)	Nitrogen Permeability (Pa·L/(s*cm²))	Water Vapor Permeability (g/m².24hr)	Heat Seal Strength (N/15mm)	Elongation at Break
Standard value	98	200-1100	100-3000	≤5.0	≤2.0×10⁻¹⁰	≤0.5	≥45	≥10%

Have Questions?

We're just a message away! for any questions or additional information. We look forward to hearing from you.

Application Examples

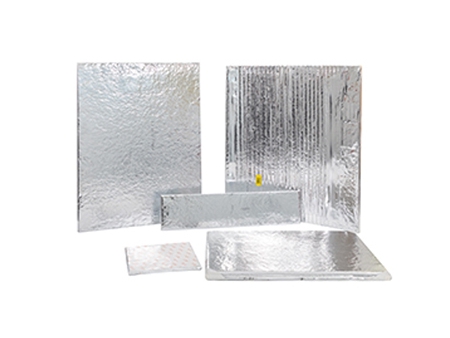

Vacuum Insulation Panels

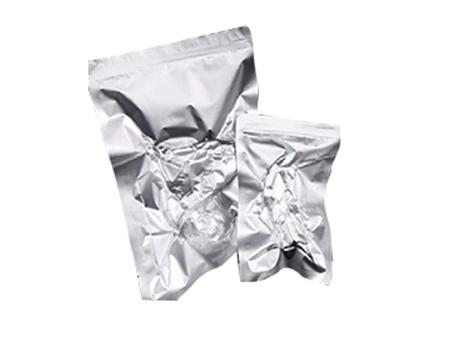

Food Vacuum Packaging

Energy-Saving Building Materials Outsourcing
