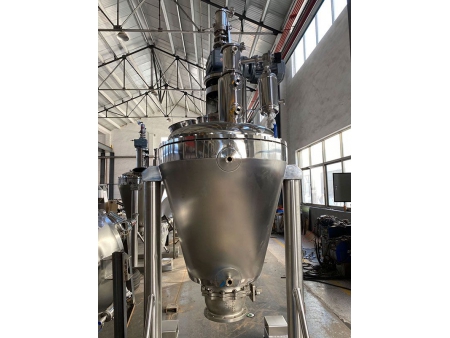

LDG Series Vertical Ribbon Vacuum Dryer
This multifunctional vertical ribbon vacuum dryer combines drying, pulverizing, and mixing in a fully enclosed system, offering exceptional versatility and efficiency. It operates at three to five times the efficiency of similar-sized double-cone vacuum dryers, making it a powerful tool for industries such as pharmaceuticals, chemicals, pesticides, and food processing. Its unique design ensures that materials are processed smoothly and uniformly, while maintaining their structural integrity.
Specifications
| Model | | | | | | | | | |
| Total volume (m³) | ≥0.5 | ≥1.0 | ≥1.5 | ≥2.0 | ≥3.0 | ≥4.0 | ≥5.0 | ≥6.0 | ≥8.0 |
| Loading coefficient | 0.7 | ||||||||
| Heating area (m²) | 2.9 | 4.6 | 6.0 | 7.5 | 9.2 | 11.0 | 13.2 | 15.5 | 17.8 |
| Motor power (kW) | 5.5 | 7.5 | 11 | 15 | 22 | 30 | 37 | 45 | 55 |
| Stirring speed (rpm) | 5-35 rpm | ||||||||
| Inner diameter of single-conical barrel (mm) | 1100 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 |
| Total height (m) | 2.6 | 3.1 | 3.4 | 3.8 | 4.2 | 4.6 | 5.0 | 5.4 | 6.0 |
Features
- Significantly reduces drying times while delivering higher efficiency, outperforming traditional systems
- Features advanced airflow technology that minimizes the impact of gases on the drying process, ensuring smooth operation
- The system minimizes material leakage and allows for controlled solid output flow, ensuring consistent results

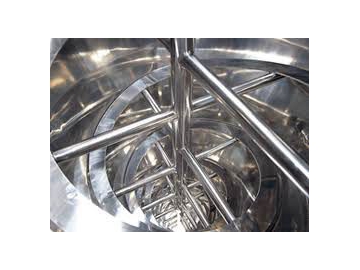

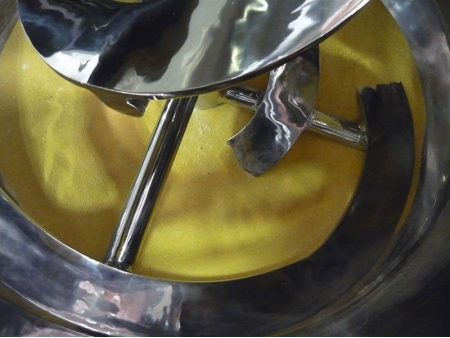

- The gentle rotating motion of the conical ribbon agitator preserves the crystal structure of the materials during drying and mixing
- Prevents contamination by eliminating the risk of seal failure in the shaft, ensuring product purity
- Offers a broad handling capacity and low energy consumption per unit mass, making it both effective and economical
- The spacious design simplifies inspection and maintenance, making it user-friendly and reliable for long-term operation
