MZG Series Pulsed Vacuum Dryer

Designed for industries that require precision and efficiency, the pulsed vacuum dryer is suitable for drying heat-sensitive, sticky, and solvent-based materials. Utilizing pulse-flow vacuum technology, it offers a highly efficient low-temperature drying process. This drying system can be powered by steam, hot water, or electricity, and it supports additional features such as steam sterilization, ozone disinfection, as well as online or soaking cleaning capabilities. These features ensure that even the most challenging materials, such as high-sugar content extracts or foaming substances, are dried uniformly and effectively.

Specifications

Model	MZG-8	MZG-12	MZG-16	MZG-24
Design loading capacity (kg/batch)	100±20%	160±20%	200±20%	320±20%
Number of shelves	8	12	8	12
Number of drying cart	1	1	2	2
Number of drying tray	32	48	64	96
Drying temperature (℃)	50℃~90℃
Pressure of pressure (bar)	≤4
Size of drying tray (mm)	585x400x50
Heating method	Steam, electricity, hot water
Area of shelf (m²)	8	12	16	24
Overall dimensions (mm)	2100×1550 ×2200	2100×1550 ×2640	2520×2480 ×2200	2520×2480 ×2640
Weight (kg)	2800	3200	5200	6000

Advantages Over Conventional Dryers

Drying efficiency increases by more than 200%, significantly reducing drying times while using 80% less energy compared to hot air ovens
The pulse technology ensures even drying, resulting in consistent product quality and color
Able to operate with steam, hot water, or electricity, providing flexibility in energy sources based on available infrastructure and specific material requirements
It supports steam sterilization, ozone disinfection, and both online and soaking cleaning options, ensuring thorough sanitation and operational convenience
For materials prone to foaming, the pulsed design effectively breaks up bubbles, while stubborn foams are managed with explosive drying methods that optimize steam's latent heat and moisture absorption

Features

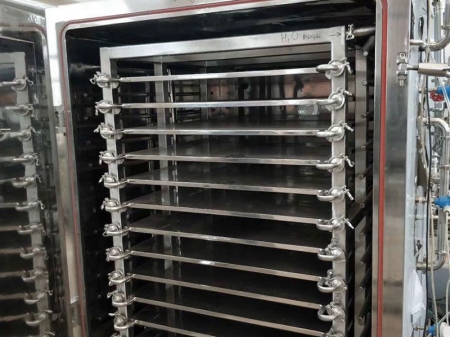

The system provides uniform heat distribution across all trays, with a flatness precision of ≤1mm, ensuring temperature stability within ±1.5°C
Constructed from premium stainless steel, the chamber’s smooth surfaces and rounded edges prevent contamination and facilitate easy cleaning
An internal heating layer prevents condensation buildup, preserving internal temperature consistency and reducing energy loss
Removable carts enable easy handling and cleaning, simplifying the maintenance process and ensuring smooth operation

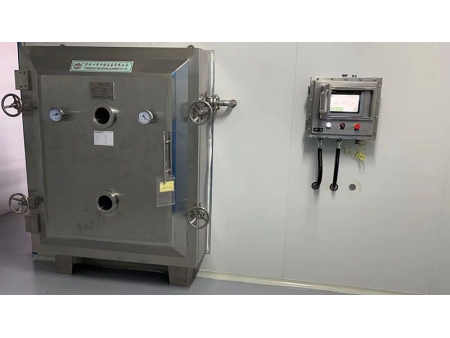

Tempered glass doors and internal lighting allow operators to observe the process without opening the system, maintaining an efficient workflow
