Wooden Die Making Machine
Request a Quote
The wooden die making machine is a type of jigsaw that can perform highly precise cuts and it features a built in dust absorption unit to prevent the release of sawdust that can damage moving parts of certain equipment.
Technical Parameters| Max.scope of work(mm) | 800 | 1000 | 1200 | 1500 |
| Table size (mm) | 600× 900 | 700× 1000 | 800× 1200 | 1000× 1300 |
| Saw Blade trip (mm) | 30 | 30 | 30 | 30 |
| Saw Blade thickness(mm) | 0.3-3 | 0.3-3 | 0.3-3 | 0.3-3 |
| Max.thickness(mm) | 40 | 40 | 40 | 40 |
| Sheet Category | Wood plastic Plate | Wood plastic Plate | Wood plastic Plate | Wood plastic Plate |
| Speed(/) | 1300 | 1300 | 1300 | 1300 |
| Total powerW) | 980 | 980 | 980 | 980 |
| Voltage (V) | 220/380 | 220/380 | 220/380 | 220/38 |

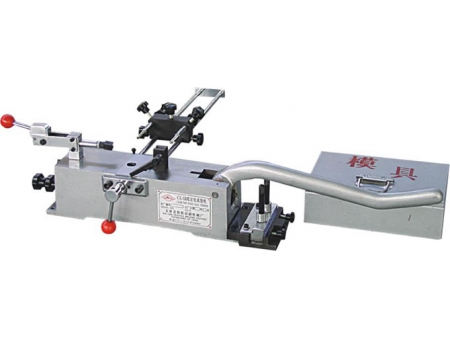

The punching machine is used to punch slots into the connection position of boards for rules and creasing purposes.
Depth of the punching:0-25mm
Punching Width: 9 mm
Dimensions: 580*310*280mm
Weight: 20kg

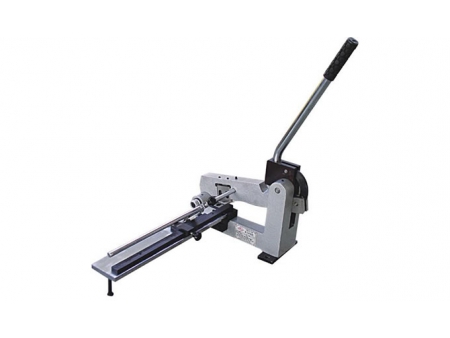

Angle of the rule's edge:16°42'
Dimensions: 700×960×265
Weight: 22Kg
