Fiber laser consumables and spare parts for laser heads

Consumables for laser heads are essential to maintaining stable equipment performance. They directly influence the precision and efficiency of cutting or welding operations, while also affecting the service life and safety of the laser processing machines. Regular replacement and proper maintenance of these spare parts help minimize downtime, reduce failures, and keep the laser processing running smoothly.

Keeping commonly used consumables in stock is not just convenient but important for high-intensity or continuous production lines. Having the right spare parts in stock and readily available allows for quick replacements when required, prevents unexpected disruptions, and keeps production on schedule. This ensures all the delivery schedules are met, which results in enhanced overall efficiency and customer satisfaction.

Laser Protection Windows

Specifications of Typical Models

Model Diameter (mm) Thickness (mm) Applicable Laser Power Rating

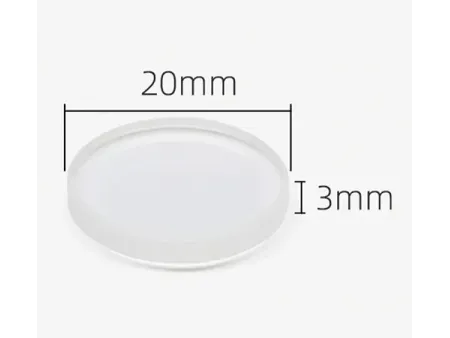

PMD20T3DS 20 3 ≤4kW
PMD30T5DS 30 5 ≤4kW
PMD37T7DS 37 7 ≤6kW,≤15kW
PMD37T3DS 37 3 ≤8kW,≤20kW

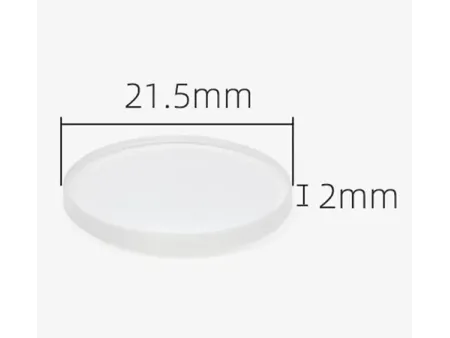

PMD21.5T2DS 21.5 2 ≤4kW,≤6kW,≤15kW
PMD34T5DS 34 5 ≤15kW

Laser Nozzles

Specifications of Typical Models

Model Outer Diameter (mm) Height (mm) Thread Orifice Diameter (mm)
FSN02-A Series 28 15 M11 1.0,1.2,1.5,2.0,2.5,3.0,3.5,4.0,4.5,5.0,6.0
FSN02-B Series
FSN07-A Series 15 19 M8 1.0,1.2,1.5,2.0,3.0
FSN07-B Series
FSN03-A Series 15 19 M8 0.8,1.0,1.2,1.5,2.0,
FSN36-A Series 13 12 M8 0.5,0.8,1.0,1.2,1.5,2.0
FSN13-A Series 15 19 M8 1.0,1.2,1.3,1.4,1.5,1.6,1.8,2.0,2.5,3.0,3.5,4.0,
FSN13-B Series 1.0,1.2,1.4,1.5,1.6,1.8,2.0,2.5,3.0,
FSN09-B Series 28 15 M11 1.2,1.4,1.5,1.6
FSN20-A Series 28 15 M11 1.2,1.3,1.4,1.5,1.6,1.7,1.8,2.0,2.5,3.0,3.5,4.0,4.5,5.0
Note:In the model code,A indicates single-layer and B indicates double-layer.
Laser Ceramic Rings

Specifications of Typical Models

Model Ceramic End Outer Diameter (mm) Metal End Outer Diameter (mm) Thread Height (mm)
FC-02 28 24.4 M11 11.7
FC-40 21.4 18 M8 13
FC-11 17.8 15 M8 12.5
FC-07 19.4 15.9 M8 12.5
FC-14 41 36 M11 21.7
FC-04 25 18 M10 19

Focusing/Collimating Lenses

Specifications of Typical Models

Power Diameter (mm) Focal Length
2kW 30 F75/F100/F125/F150
4kW 30 F75/F100/F125/F150/F200
6kW 37 F100/F150/F200
8kW 37 F100/F150/F200
12kW 37 F100/F200
15kW 37 F100/F200

Laser Nozzle Sensors

Specifications of Typical Models

Model Applicable Laser Head Focal Length Flat/Pointed
CB-20 GS03B F125 Flat
CC-23 GS03B F125 Pointed
KB-01-H01 GHB Series F200 Flat
KB-03-H01 GHB Series F300 Pointed
MC-02 LCR03 F125 Pointed
MC-03 LCR03 F150 Pointed
