40W F2/F3 Hypoid Gear Motor Manufacturer

40W F2/F3 Hypoid Gear Motor

Request a Quote

View All: http://zd-drivers.com/6-1-2-hypiod-gear-motor.html

Specifications (Continuous Rating)

Model	Output Power	Voltage	Frequency	Rated Current	Rated Torque	Rated Speed	Locked Rotor Torque	Locked Rotor Current	Insulation Grade
Model	W	V	Hz	A	N.m	r/min	N.m	A	Insulation Grade

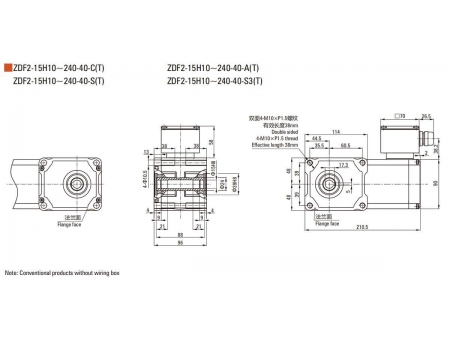

ZDF2-15H-40-S(TB)	40	200	60	0.27	0.25	1500	0.62	0.76	F
ZDF2-15H-40-S(TB)		220	50	0.29	0.29	1320	0.90	0.90
ZDF2-15H-40-S3(TB)		220	50	0.29	0.29	1320	0.90	0.90
		380	50	0.17	0.29	1320	0.90	0.56
		460	60	0.16	0.23	1650	1.00	0.62

Model	Output Power	Voltage	Frequency	Rated Current	Rated Torque	Rated Speed	Locked Rotor Torque	Locked Rotor Current	Capacitor	Insulation Grade
Model	W	V	Hz	A	N.m	r/min	N.m	A	UF	Insulation Grade

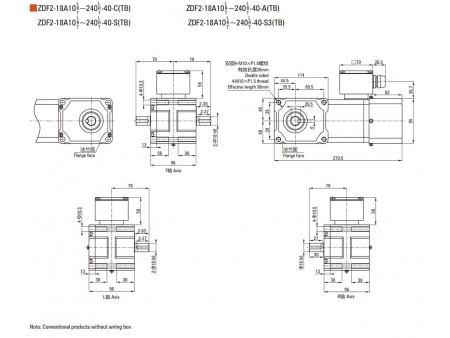

ZDF2-18A-40-C(TB)	40	220	60	0.33	0.23	1650	0.20	0.80	2.50	F
ZDF2-18A-40-C(TB)		220	50	0.33	0.29	1350	0.20	0.85
ZDF2-18A-40-A(TB)		220	50	0.33	0.29	1350	0.20	0.85
		110	50	0.65	0.29	1350	0.20	1.70	10.0
		110	60	0.65	0.23	1650	0.20	1.50	10.0
