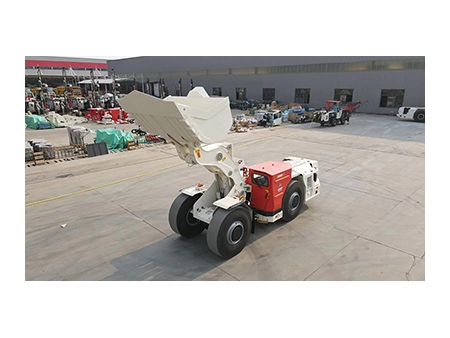

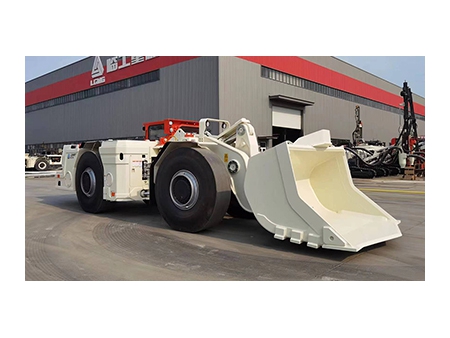

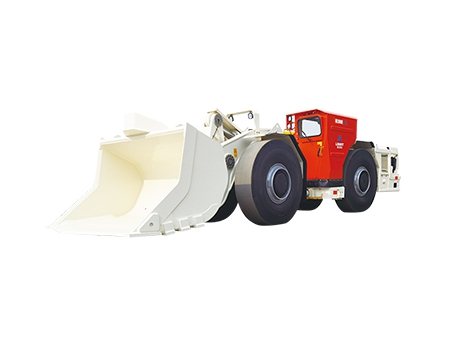

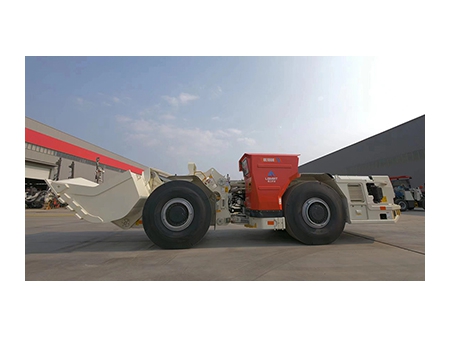

TK100H Diesel Powered Underground Loader
Request a Quote
The TK100H diesel powered underground loader is an ideal choice for mining operations with more than 3.5m x 3.5m roadways, boasting an impressive 10 ton rated capacity. Its standout features include a compact structure, robust shoveling power, dependability, and longevity - especially well-suited to harsh underground mining conditions. With its roots in the pioneering Sandvik EJC210 prototype, it is easy to see why such an impressive piece of engineering has made its mark.
Features- Enhanced Economic Efficiency
The TK100H draws inspiration from the renowned Sandvik model, EJC210, ensuring exceptional production efficiency. It effectively minimizes the production cost per ton of ore, maximizing overall economic benefits. - High Safety Standards
With FOPS&ROPS certification, the TK100H guarantees a safety cab that adheres to rigorous safety standards. It continues the safety-focused design concept of Sandvik, providing optimal vehicle safety in underground operations. - Comfortable Operation
The TK100H prioritizes operator comfort through its exceptional ergonomic design. Operators can operate the machine with ease, promoting a comfortable and efficient working environment. - Easy Maintenance
The TK100H simplifies maintenance procedures by enabling daily maintenance to be conducted at ground level. This convenience reduces downtime and enhances operational efficiency.
| Model | TK100H |
| Rated load (kg) | 10000 |
| Length*width*height (mm) | 9700*2550*2350 |
| Max. shovel force (kN) | 225 |
| Max. traction force (kN) | 235 |

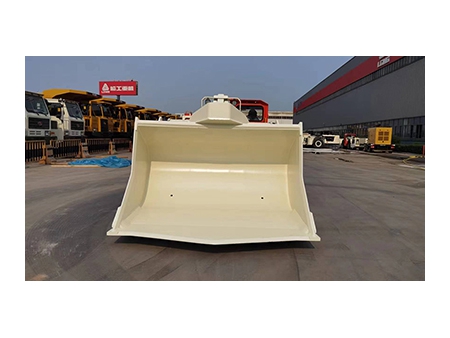

| Standard bucket capacity (m³) | 4.5 |
| Forward and Backward Speed | |
| 1st gear (km/h) | 4.5 |
| 2nd gear (km/h) | 10 |
| 3rd gear (km/h) | 20 |
| 4th gear (km/h) | 25 |
| Hydraulic Cycle Times | |
| Arm raising time (s) | 6.5 |
| Arm lowering time (s) | 5.0 |
| Tipping time (s) | 3.2 |
| Unladen Mass | |
| Total weight (kg) | 30100 |
| Front axle load (kg) | 13450 |
| Rear axle load (kg) | 16650 |
| Diesel Engine | |
| Model (Volvo) | TAD1150VE |
| Rated output power (kW) | 235 |
| Number of cylinders | 6 |
| Displacement (L) | 10.84 |
| Cooling method | Water cooling |
| Air filter | Donaldson |
| Emission standard | Tier 3 |
| Average fuel consumption (L/H) | 23.5 |
| Fuel tank volume (L) | 380 |
| Torque Converter | |
| Model | DANA C5000 |
| Gearbox | |
| Model | DANA R36000 |
| Drive Axle | |
| Front axle | DANA 20D |
| Rear Axle | DANA 20D |
| Tire | |
| Model/size | 18.00 R25 |
| Hydraulic System | |
| Hydraulic pump | Rexroth |
| Control valve | Parker |
| Steering cylinder | LGMRT |
| Filter (μ/m) | 10 |
| Lift cylinder | LGMRT |
| Tipper cylinder | LGMRT |
| Braking System | |
| Accumulator | Aurel |
| Brake element | MICO |
| Brake | Normally closed wet type |
| Electric System | |
| Generator | 24V,55A |
| Battery | 120Ah |
| Starting motor | 24V,5.5kW |
| Illumination | LED 8-35W |
| Electronic control components | Schneider |
| Turning Radius | |
| Max. steering angle (°) | ±42.5 |
| Max. inner clearance radius (mm) | 2700 |
| Min. outer clearance radius (mm) | 7100 |
| Lubrication System | |
| Lubrication method | Manual centralized |
| Safety Devices | |
| Security roof | ROPS & FOPS |
| Handheld fire extinguisher | |
| Seat belt | |
| Main switch | Lock/brake button/emergency stop button |
| Reversing alert | |
| Options | |
| Bucket | 4.0m³/5.0 m³ |
| Wireless remote control | |
| Automatic fire extinguishing system | |
| Reversing video | |
| Automatic centralized lubrication | |
| Wear-resistant replaceable bucket teeth | |
| Tubeless tires | |
| Scraper weighing system | |
| Scraper boom stabilization system | |
