Automatic Pocket Setter for Knitted & Woven Fabrics

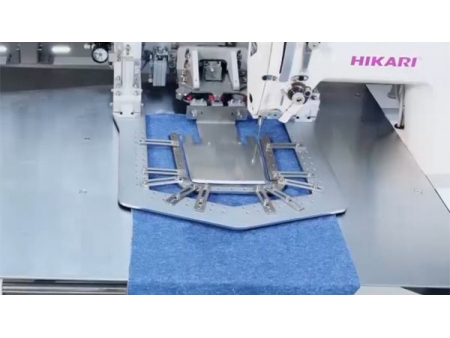

Enhance your garment production with our automatic pocket setter, designed for stitching pockets on both woven and knitted fabrics, particularly suited for shirts and denim apparel. Our pocket setter's straight stitching and bar tacking operations can be completed in one step, making it ideal for various trouser and shirt pockets, as well as irregular garment parts.
- Model: HSAT-K4A
- Oil supply: Automatic oil supply
- Needle: Knitwear: DPX17#9-#14 Shirt: DPX17#9-#12 Denim: DPX17#16#18
- Needle pitch: 0.1-12.7
- Presser foot lifting height: 0-11
- Sewing range: MAX:200X200MM MIN:35-40MM
- Air supply: 60L/min
- Speed (S.P.M): 2800 r/min
- Dimensions: 1900x1300x1300mm
- No. of programs: 1000
- Motor: 750W Direct drive servo motor
- Die change time: 20s
- Power supply: Single phase 200-240V
- Power: 1.4kW
- Air pressure: 0.6Mpa
-
-
Versatile Technology Incorporates various innovative technologies to handle heavy, light, elastic, and soft fabrics, ensuring smooth and aesthetically pleasing pocket stitching for shirts, casual wear, jeans, suits, and sportswear.
-
-
Quick Die ChangeAchieve high work efficiency with a 5-minute full set die change, setting a new standard among similar products.
-
-
-
- Automated Stitching: Equipped with adjustable dies, enhancing work efficiency while maintaining high-quality results, making it user-friendly and easy to handle.
- Expanded Work Area: Upgraded to accommodate a maximum effective sewing range of 250mm×280mm, expanding the machine's versatility.

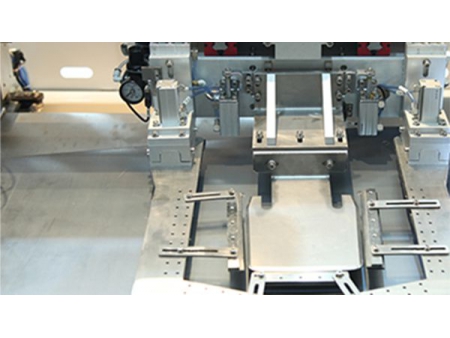

- Double Suction Pressure Plate: Ensures flat and consistent pocket edges, promoting stability and uniformity.
-
-

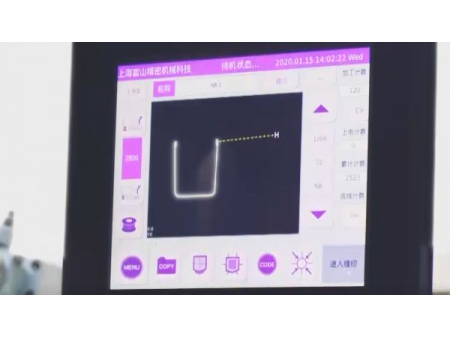

Multiple Work Modes Offers flexibility with automatic, manual, and specific pattern modes, making it suitable for various applications.
-
-
Integrated Felting Function Improves pocket stitching durability and aesthetics, streamlining the sewing process and boosting productivity.
