For sites without direct connection to a central egg conveyor belt, the optional 615 automatic egg loader is recommended. This system automatically lifts eggs from trays and transports them to the accumulator via a conveyor belt, while empty trays are stacked at the end of the conveyor for manual removal.

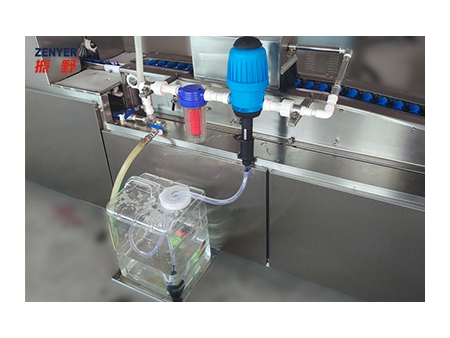

The system features a proportional dosing system, featuring a filter, doser, and liquid tank. Operators can add cleaning agents or disinfectants (provided by the customer), and the doser automatically mixes and sprays the solution onto the eggs at a 1:100 ratio (factory setting).

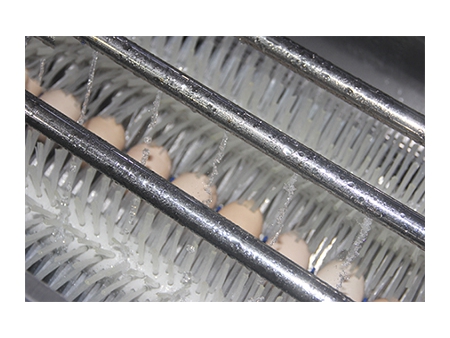

The triple-channel washing machine uses a minimum of 450 liters of water per hour (150 liters per channel), with specially designed brush structures ensuring that every part of the egg’s surface is cleaned. Brush speed can be adjusted based on the level of dirt on the eggs, reducing the risk of shell damage while maintaining the highest level of cleanliness and minimal water usage.

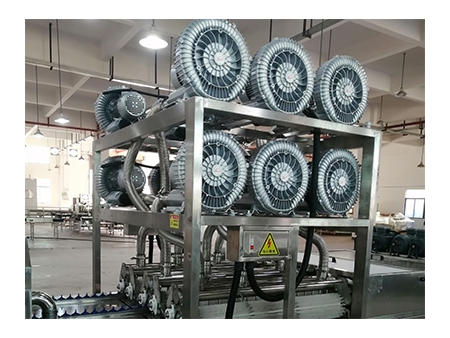

A specially designed air-drying system, combining drying brushes and nozzles, ensures rapid drying of eggs after washing without overheating, preserving their quality. Drying efficiency can reach up to 98%, depending on environmental humidity.

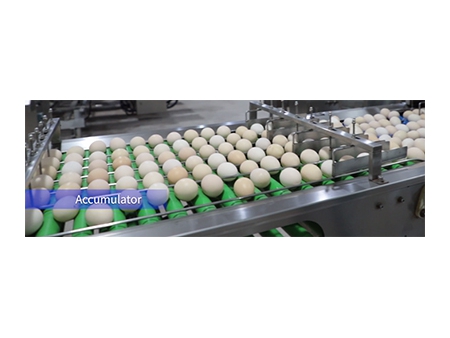

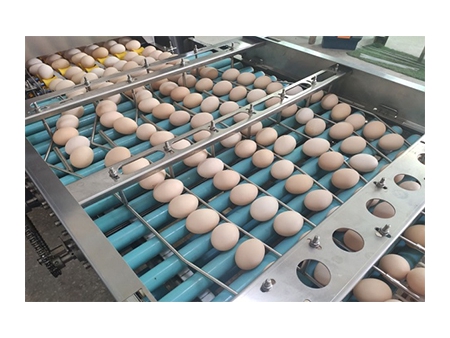

After cleaning and drying, the eggs exit the triple-channel washer and are collected in the accumulator of the grading machine. They are then divided into six lanes via guide bars, ready for the next stage of processing.

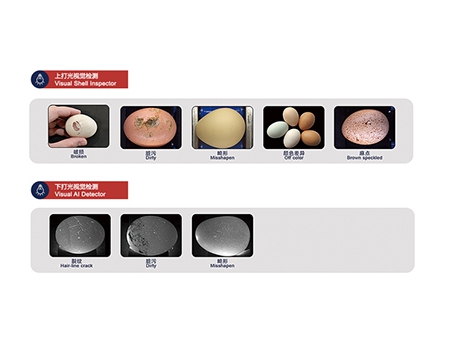

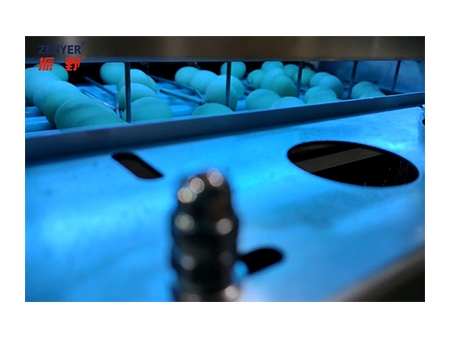

The visual AI system uses non-contact technology, where high-definition cameras installed above the detection unit capture images of the eggs on the feed rollers. Using near-infrared (NIR) light and advanced image processing techniques combined with AI algorithms, the system automatically detects defects such as large crack, hair line crack, dirty, or other imperfections. Defective eggs are automatically removed from the processing line, ensuring that only high-quality eggs continue through the system.

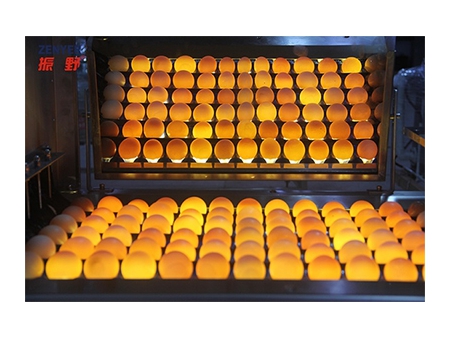

After orientation, eggs undergo a second candling to further reduce the likelihood of defective eggs passing through.

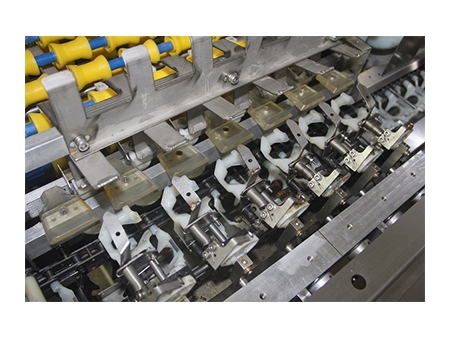

The 109 egg grader system divides eggs into 4-7 weight classes with a grading accuracy of ±1 gram, processing 30,000 eggs per hour. Data for each batch of eggs, including the weight of each grade, the number of eggs per grade, the number of egg cartons and trays, and the number of defective eggs (such as dirty, deformed, or broken eggs) are displayed in real-time on an electronic data sheet. If the machine is equipped with the optional visual AI detection system, the number of eggs with defects will also be recorded. This data can be exported to external applications, such as Excel, for easy storage. The system’s unique intelligent self-diagnostic function will display fault reasons on the screen in the event of a malfunction, helping users quickly identify and resolve issues. The grading machine is also equipped with Wi-Fi capability, enabling remote monitoring and diagnostics via the internet. In case of software issues, the system can be quickly fixed and updated remotely.

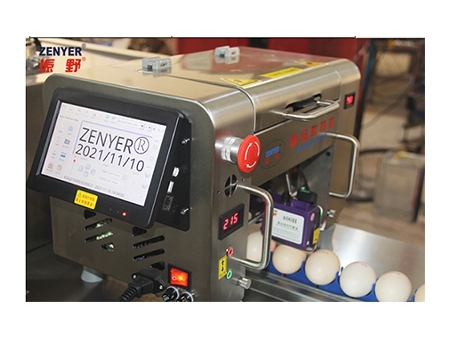

The 401H egg printer, a single-head inkjet printer, can be installed on the egg grading machine. As eggs pass through the optical sensor under the printer, it triggers the printing process. The inkjet printer can print text, numbers, logos, images, date formats (including Julian date), and expiry dates.
An optional 401Y egg printer, a single-head inkjet printer, can also be installed, linked with the grading machine’s PLC control program. The printing content can be customized based on egg weight. For example, grade 1 eggs will be printed with C1, grade 2 with C2, grade 3 with C3, and so on.

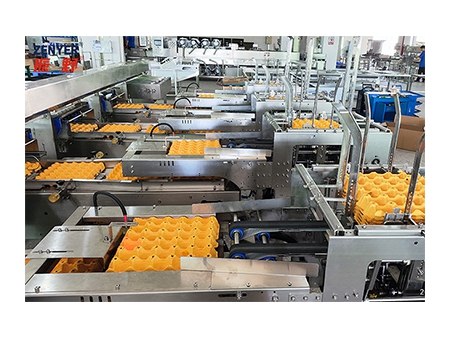

Enhances efficiency by automatically dispensing empty egg cartons or trays. When a stack of empty trays is placed in the denesting device, the system separates each tray reliably, ensuring that each empty egg carton or tray is automatically sent to the empty tray conveyor belt.
