Gemstone color grading lights for diamond inspection and grading

Proper lighting is important for accurate diamond color grading, as variations in light sources can affect color perception. These grading lamps are designed to meet industry standards, providing uniform illumination free from UV interference, with balanced energy distribution, minimal heat emission, and a color temperature range of 5500K to 7200K. By offering a controlled and consistent light source, they enhance accuracy and comparability in diamond grading, making them an essential tool for gemologists and grading laboratories.

Provides standardized lighting conditions for diamond grading.

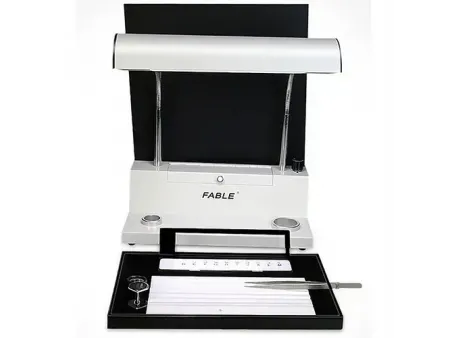

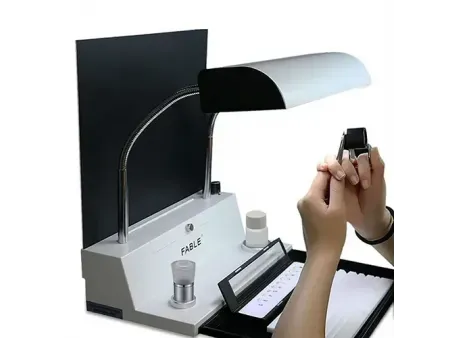

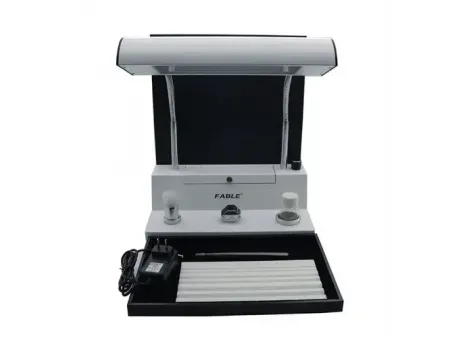

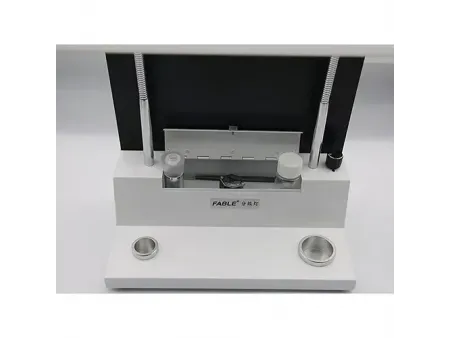

FDL-12 Daylight Fluorescent Grading Lamp

Light intensity	2000 lx (20cm)
Color temperature	6000 ±500K
power supply	220V
Dimensions	30(L)×16(W)×50(H)cm
Weight	3.4kg

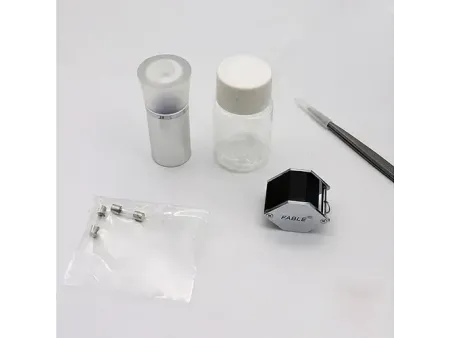

Accessories included	Diamond tweezers ×1, glass bottle ×1, hearts and arrow viewer ×1, black and white contrast panel ×1, fuse ×1, specialized tray ×1, color grading board ×1, 10x magnifier ×1.

Features

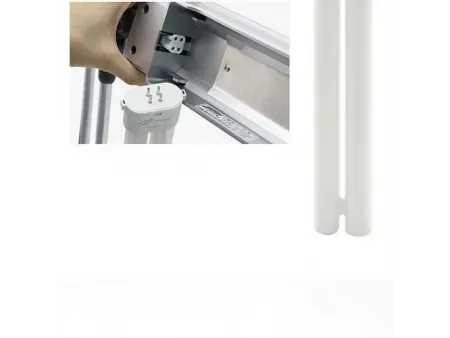

Equipped with a daylight fluorescent lamp, providing an illumination level of 2000lx at a 20cm distance.

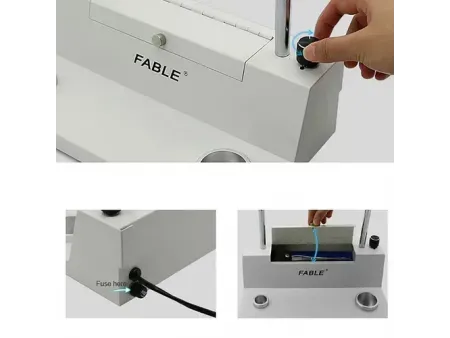

Adjustable bi-level dimming with interchangeable black and white background panels to accommodate different grading and color evaluation needs.
Comes with a complete set of standard diamond grading tools for accurate assessment.
Full spectrum continuous light source

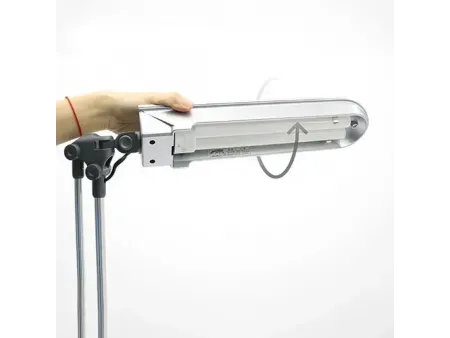

Stable light output, no flickering, adjustable illumination angle
No background panel required

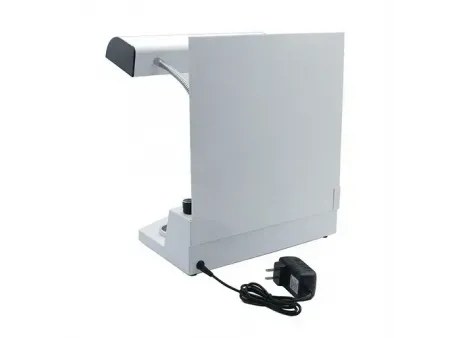

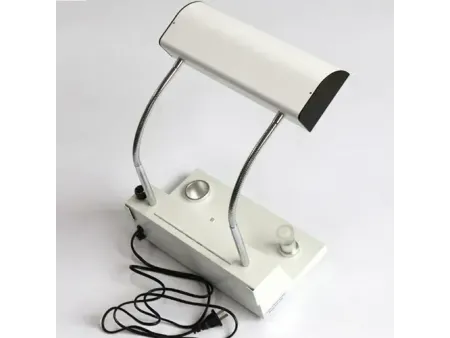

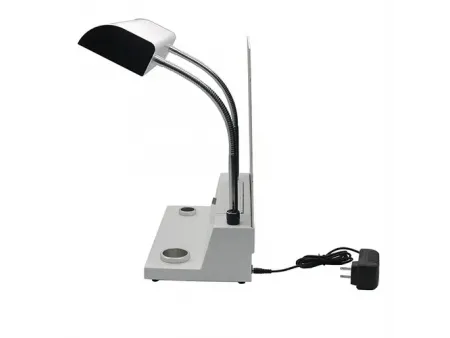

FDL-25 Daylight Fluorescent Grading Lamp

Light intensity	2000 lx (20cm)
Color temperature	6000 ±500K
power supply	220V
Dimensions	23(L)×18(W)×52(H)cm
Weight	2.0kg

Features

Unique exterior design.
Daylight fluorescent lamp with a full-spectrum continuous light source.
Stable light output, no flickering, adjustable illumination angle
Bi-level dimming, available for color comparison and grading needs.
Black and white contrast panel to minimize external interference.

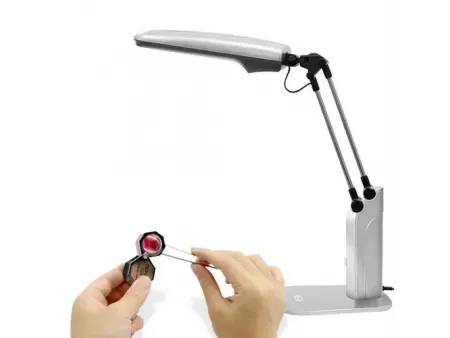

FDL-LED High-brightness LED Grading Lamp

Light intensity	2000 lx (20cm)
Color temperature	6000 ±500K
power supply	110-240V
Dimensions	30(L)×16(W)×50(H)cm
Weight	3.4kg
Accessories included	Diamond tweezers ×1, glass bottle ×1, hearts and arrow viewer ×1, black and white contrast panel ×1, fuse ×1, specialized tray ×1, color grading board ×1, 10x magnifier ×1.

Features

High-brightness LED panel light with energy-efficient and environmentally friendly design, providing 2000 lx illumination at a 20cm distance.
Includes a standard set of diamond grading tools for professional assessment.
Stable light output, no flickering, adjustable illumination angle
Stepless continuous dimming, available for color comparison and grading needs
Black and white contrast panel to minimize external interference.

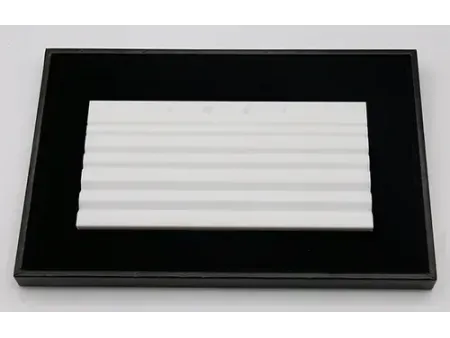

FDB-1A Diamond Color Grading Board (without Tray)

Features

Designed as a reusable alternative to traditional diamond color grading paper.
Unlimited use without the need for replacement.
