3 Series of hydraulic control valves available with displacement of 10-100ml/r

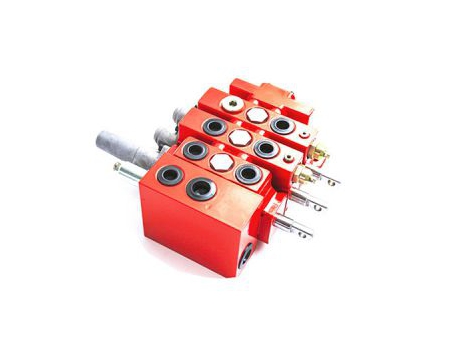

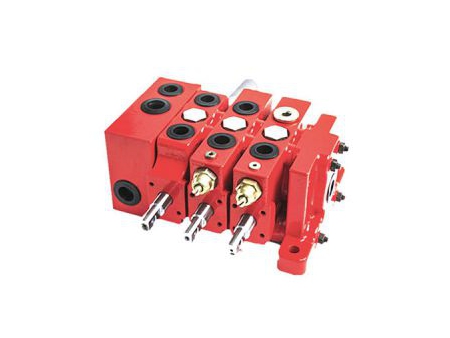

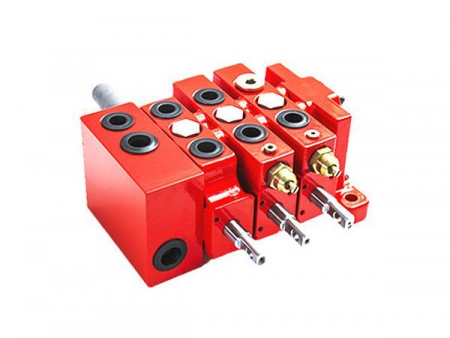

Sectional Directional Control Valve

The GKV80 series from GRH is a modular, open-style multi-way valve, optimized for mobile machinery with a flow rate of 20-100L/min. These valves are engineered for versatility, proving to be an essential component in a wide range of applications. It's particularly effective in agricultural machinery for various farming operations, in construction machinery for enhanced efficiency in building tasks, and in mining machinery where precision and durability are crucial.

Specifications
Nominal flow rate 80L/min Max. pressure (T port) 25bar
Max. flow 100L/min Internal leakage (70 bar) A/B to T 15-20cc/min
Min. flow 20L/min Internal leakage (70 bar) A/B to T with port valve 2-5cc/min
Max. pressure (P port) 350bar Spool stroke (position 1/2) 7/-7mm
Max. pressure (A/B port) 350bar Floating spool stroke (position 1/2 and F) 71-7 -10mm

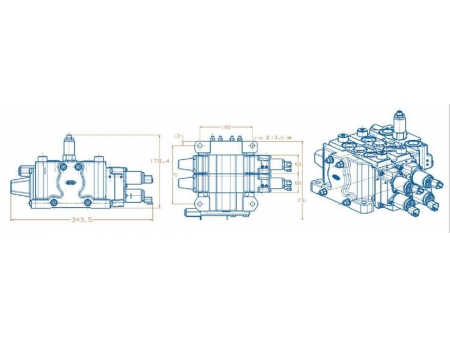

Dimensions
Applications

The GKV80 series also excels in handling and maintenance machinery, as well as other types of engineering vehicles, offering reliable performance and adaptability.

Renowned for its robustness and adaptability, the GKV80 series is a preferred choice for a wide range of engineering applications, including handling and maintenance machinery as well as other engineering vehicles. Its reliable performance is crucial in enhancing the efficiency and functionality of equipment like wheel loaders, forklifts, harvesters, tractors, and boom truck cranes, making it indispensable in various operational settings.
