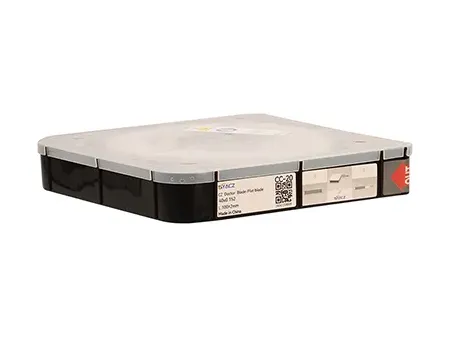

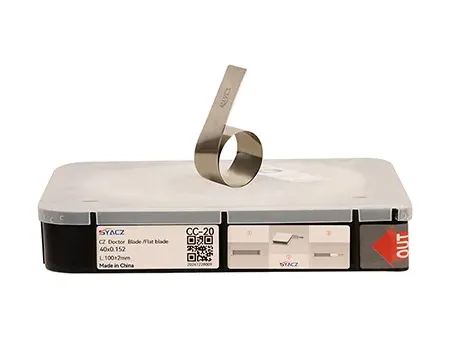

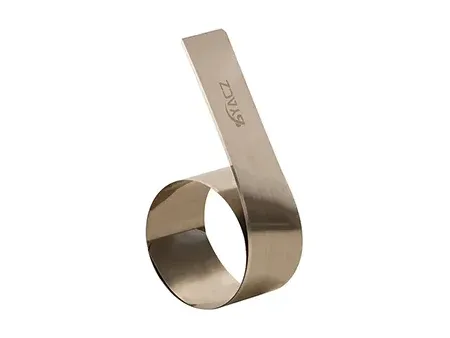

CC-20 METAL DOCTOR BLADE

Request a Quote

View All: http://doctorblade-en.com/1-2-2-cc-20-1274-carbon-steel.html

Carbon Steel Doctor Blades

Blade Edge Shapes

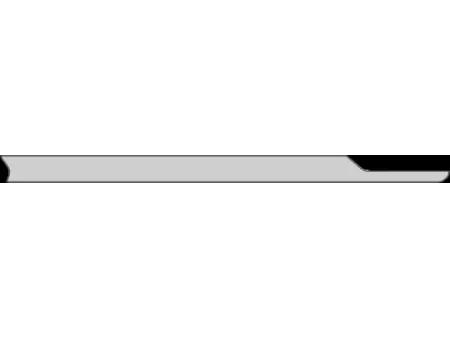

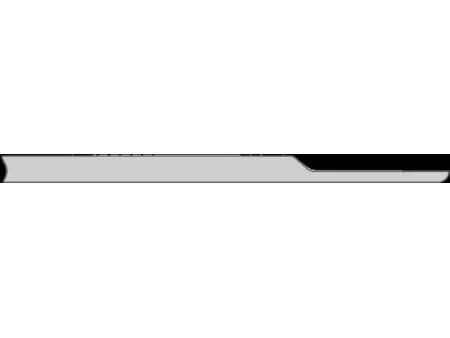

Short Lamella Blade Edge
Long Lamella Blade Edge

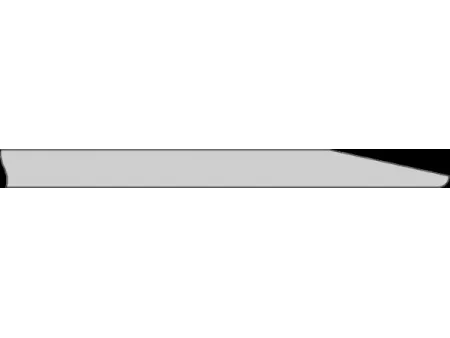

Short Bevel Blade Edge

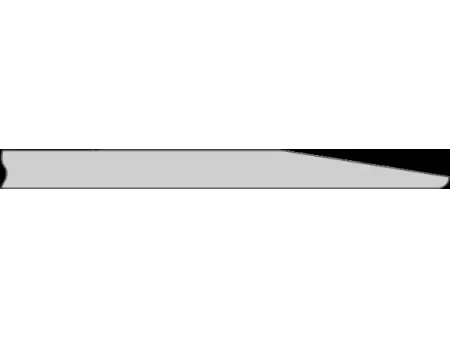

Long Bevel Blade Edge

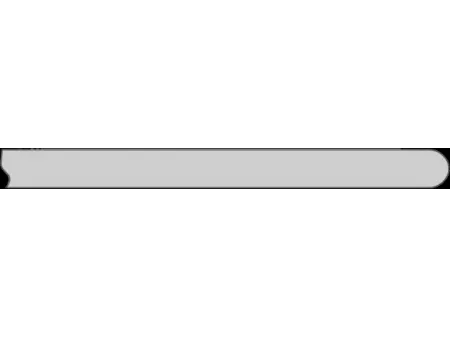

Round Blade Edge

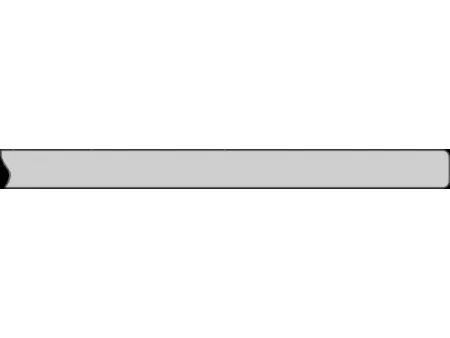

Square Blade Edge

Specifications

Width Range: 8mm-60mm

Width Tolerance: ±0.1mm

Thickness Range: 0.152mm-0.3mm

Thickness Tolerance: ±0.005mm

Hardness: 550-600HV

Tensile Strength: 1850-2000Pa

Straightness: ≤0.5mm/3000mm

Dimensions

8mm×0.15mm×100m
9mm×0.15mm×100m
10mm×0.102mm×200m
10mm×0.15mm×100m
20mm×0.15mm×100m
20mm×0.2mm×100m
30mm×0.15mm×100m
30mm×0.2mm×100m
35mm×0.15mm×100m
35mm×0.2mm×100m
40mm×0.15mm×100m
40mm×0.2mm×100m
40mm×0.3mm×100m
50mm×0.15mm×100m
50mm×0.2mm×100m
60mm×0.15mm×100m
60mm×0.2mm×100m

The listed specifications are standard sizes. Customized dimensions can be provided upon request to meet specific printing requirements.

Applications

Plastic film printing, Laminating and coating machines, Paper printing, Leather and plastic printing

Application Processes

Gravure printing, Flexo printing

Ink Types

Solvent-based ink, Varnish

Manufactured from German ZAPP 1274 carbon steel, these doctor blades provide strong wear resistance along with moderate oxidation and corrosion protection, ensuring reliable performance in medium to high-speed printing presses operating at speeds of up to 200m/min. A durable structure helps reduce fine blade lines, ink smearing, and streaks, contributing to consistent ink transfer and stable print quality. They perform exceptionally well in varnishing and coating applications, ensuring uniform ink distribution for consistent results.
