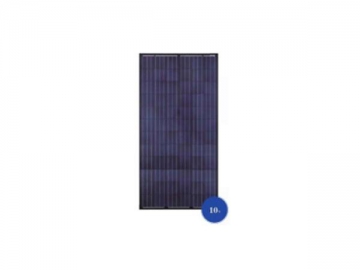

300W~330W Black Polycrystalline Solar Panel
Request a Quote
View All: http://shanghaielectric-smec.com
Electrical Properties of Polycrystalline Module (STC)
Temperature Coefficients
Working Conditions
Specifications
Packaging
| Model | RSM72-6-300M | RSM72-6-305M | RSM72-6-310M | RSM72-6-315M |
| Max. power (W) | 300W | 305W | 310W | 315W |
| Max. power tolerance (%) | 0~ 3% | 0~ 3% | 0~ 3% | 0~ 3% |
| Max. voltage (V) | 35.90 | 36.20 | 36.40 | 36.60 |
| Max. current (A) | 8.36 | 8.43 | 8.52 | 8.61 |
| Open circuit voltage (V) | 44.90 | 44.92 | 44.94 | 44.96 |
| Short circuit current (A) | 8.85 | 8.95 | 9.15 | 9.25 |
| Conversion efficiency | ＞15.46% | ＞15.72% | ＞15.98% | ＞16.24% |
| Model | RSM72-6-320M | RSM72-6-325M | RSM72-6-330M |
| Max. power (W) | 320W | 325W | 330W |
| Max. power tolerance (%) | 0~ 3% | 0~ 3% | 0~ 3% |
| Max. voltage (V) | 36.80 | 36.90 | 37.20 |
| Max. current (A) | 8.7 | 8.81 | 8.87 |
| Open circuit voltage (V) | 45.02 | 45.06 | 45.10 |
| Short circuit current (A) | 9.34 | 9.46 | 9.58 |
| Conversion efficiency | ＞16.49% | ＞16.75% | ＞17.00% |
| NOCT | 45℃±2℃ |
| Temperature coefficient of open circuit voltage (ß) | -0.32%/℃ |
| Temperature coefficient of short circuit current (ɑ) | 0.034%/℃ |
| Temperature coefficient of power | -0.40%/℃ |
| Max. system voltage | 1000 VDC |
| Working temperature range | -40℃~ 85℃ |
| Max. load capacity | 5400pa IEC61215 |
| Max. dia. | 25mm |
| impact speed | 23m/s |
| Solar cells | Polycrystalline, 156×156mm(6×12), 3BB/4BB |
| Junction box | IP67,3 diodes |
| Tempered glass | 4.0mm |
| Connecting wire/ connector | MC4 compatible /4mm2, 900mm long |

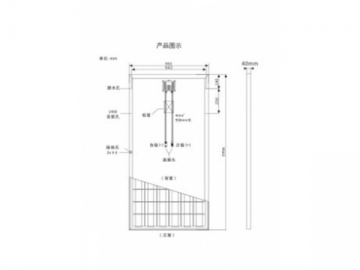

| Dimensions of aluminum frame | 1956×992×40mm |
| Weight | 25KG |
| Vehicle type | 17.5 m transport truck |
| Module thickness | 40mm |
| Pieces/ case | 23 |
| Pieces | 1168 |
