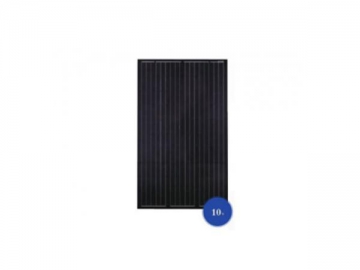

300W~330W Black Monocrystalline Solar Panel
Request a Quote
View All: http://shanghaielectric-smec.com
Electrical Properties of Polycrystalline Module (STC)
Electrical Properties of Polycrystalline Module (NOCT)
Temperature Coefficients
Working Conditions
Specifications
Packaging
| Model | RSM60-6-255P | RSM60-6-260P | RSM60-6-265P | RSM60-6-270P | RSM60-6-275P |
| Max. power (W) | 255 | 260 | 265 | 270 | 275 |
| Max. power tolerance (%) | 0~ 3% | 0~ 3% | 0~ 3% | 0~ 3% | 0~ 3% |
| Max. voltage (V) | 30.30 | 30.60 | 30.90 | 31.20 | 31.50 |
| Max. current (A) | 8.42 | 8.50 | 8.58 | 8.66 | 8.74 |
| Open circuit voltage (V) | 37.60 | 37.80 | 38.00 | 38.20 | 38.40 |
| Short circuit current (A) | 8.96 | 9.04 | 9.12 | 9.20 | 9.28 |
| Conversion efficiency | ＞15.60% | ＞15.90% | ＞16.20% | ＞16.50% | ＞16.80% |
| Model | RSM60-6-255P | RSM60-6-260P | RSM60-6-265P | RSM60-6-270P | RSM60-6-275P |
| Max. power (W) | 190W | 194W | 197W | 201W | 205W |
| Max. power tolerance (%) | 0~ 3% | 0~ 3% | 0~ 3% | 0~ 3% | 0~ 3% |
| Max. voltage (V) | 28.00 | 28.10 | 28.30 | 28.40 | 28.60 |
| Max. current (A) | 6.79 | 6.89 | 6.98 | 7.08 | 7.18 |
| Open circuit voltage (V) | 35.00 | 35.20 | 35.30 | 35.50 | 35.70 |
| Short circuit current (A) | 7.25 | 7.31 | 7.38 | 7.44 | 7.50 |
| NOCT | 45℃±2℃ |
| Temperature coefficient of open circuit voltage (ß) | -0.32%/℃ |
| Temperature coefficient of short circuit current (ɑ) | 0.05%/℃ |
| Temperature coefficient of power | -0.39%/℃ |
| Max. system voltage | 1000VDC |
| Working temperature range | -40℃~ 85℃ |
| Max. load capacity | 5400pa IEC61215 |
| Shock resistant capacity | Max. dia. 25mm, impact speed 23m/s |
| Solar cells | Polycrystalline, 156×156mm (6×10), 4BB |
| Junction box | IP67, 3 diodes |
| Tempered glass | 3.2mm |
| Connecting wire/ connector | MC4 compatible/ 4mm2, 900mm long |

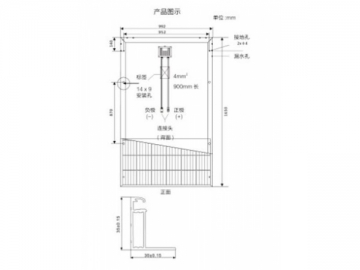

| Dimensions of aluminum frame | 1650mm×992mm×35mm |
| Weight | 18.0KG |
| Vehicle type | 17.5m transport truck |
| Module thickness | 35mm |
| Pieces/ case | 30 |
| Pieces | 1500 |
