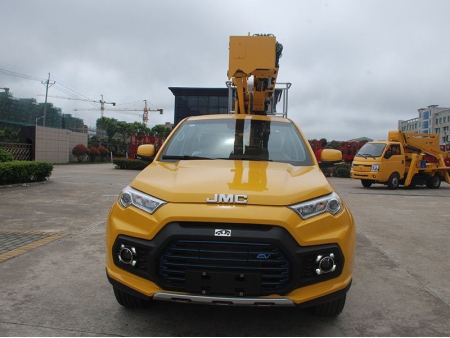

Truck-Mounted Aerial Work Platform S Series

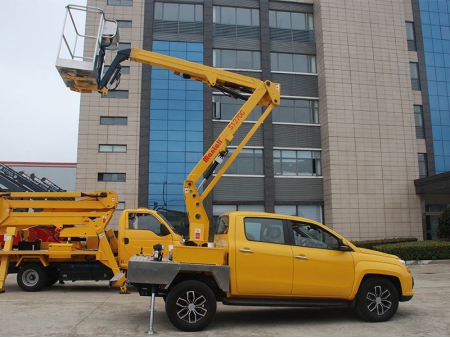

Mantall S series truck-mounted aerial work platform is designed with a 360-degree rotating turntable and an articulated arm that boasts an outreach capability of 14.5 meters, providing solutions for precision positioning while transport loads around an obstruction. The platform with 180-degree rotation allows worker to easily access to work area and stay faced toward the task.
Mantall S series truck-mounted platforms are provided with a range of options to meet individual customer meeds regarding drive system, platform dimensions, components or other specific functions. They allow deployment in a variety of tasks including shipbuilding, firefighting, telecom connection, street light installation, signage installation, etc.
Specifications
| Model | S1470C | S1770C | S2110C | S2512C | S2815C |
| Working height, m | 14.35 | 17.20 | 20.00 | 24.80 | 27.80 |
| Platform height, m | 12.35 | 15.20 | 18.00 | 22.80 | 25.80 |
| outreach max, m | 7.00 | 7.40 | 10.00 | 12.50 | 14.50 |
| Turntable rotation ° | 360 | 360 | 360 | 360 | 360 |
| Lift capacity max, kg | 200 | 220 | 220 | 220 | 220 |
| Platform rotation ° | 180 | 180 | 180 | 180 | 180 |
| Platform size, mm | 1500 x800x 1150 | 1500x800x1150 | 1500x800x1150 | 1780x730x1120 | 1700x700x 1100 |
| Stowed height, mm (1) | 2700 | 2400 | 2400 | 3000 | 2920 |
| Stowed length, mm (6) | 6350 | 5790 | 5790 | 8300 | 6900 |
| Stowed width, mm (14) | 2100 | 2100 | 2100 | 2550 | 2200 |
| Control modes | Electro-hydraulic proportional control | ||||
| Outriggers type | Hydraulic | ||||
| Articulating boom types | Steel single quads type | Steel dual quads type | |||
| chassis specification | 2T | 3.5T | 3.5T | 6T | 6T |
Stowed Dimensions
