Hollow Paddle Dryer
QJ Series Hollow Paddle Dryer

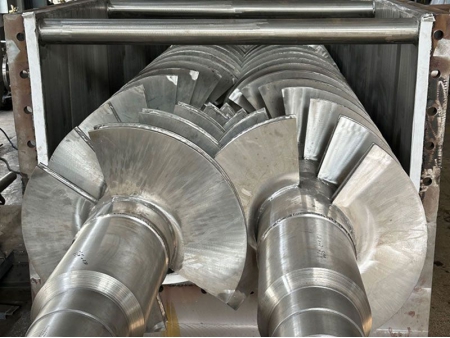

Our hollow paddle dryers are designed to handle a wide variety of materials, from pastes to powders. Its innovative wedge-shaped paddles provide excellent heat transfer while maintaining a self-cleaning function, ensuring consistent performance. Capable of performing operations such as drying, cooling, heating, and sterilization, this system is ideal for industries requiring precise control and minimal energy consumption. With its flexibility, it meets the needs of sectors like food processing, chemicals, and industrial sludge treatment.
Hollow paddle dryers are widely applied in food processing, chemicals, petrochemicals, dye production, and industrial sludge treatment, offering reliable performance across various sectors.
| Model | | | | | | | | | | | | | |
| Heat exchange area (m²) | 3 | 9 | 13 | 18 | 29 | 41 | 52 | 68 | 81 | 95 | 110 | 125 | 140 |
| Effective volume (m³) | 0.06 | 0.32 | 0.59 | 1.09 | 1.85 | 2.8 | 3.96 | 5.21 | 6.43 | 8.08 | 9.46 | 10.75 | 12.18 |
| Rotation speed (rpm) | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 | 5-10 | 5-10 | 5-10 | 5-10 | 1-8 | 1-8 | 1-8 | 1-8 |
| Transmission power (kW) | 2.2 | 4 | 5.5 | 7.5 | 11 | 18.5 | 30 | 37 | 45 | 55 | 75 | 90 | 110 |
| Machinewidth A (mm) | 306 | 584 | 762 | 940 | 1118 | 1296 | 1474 | 1655 | 1828 | 2032 | 2210 | 2480 | 2610 |
| Total width B (mm) | 736 | 841 | 1066 | 1320 | 1474 | 1676 | 1854 | 2134 | 2186 | 2438 | 2668 | 2732 | 2935 |
| Machine length C (mm) | 1956 | 2820 | 3048 | 3328 | 4114 | 4724 | 5258 | 5842 | 6020 | 6124 | 6850 | 7500 | 7860 |
| Total length D (mm) | 2972 | 4876 | 5486 | 5918 | 6808 | 7570 | 8306 | 9296 | 9678 | 9704 | 10300 | 11800 | 12900 |
| Center height E (mm) | 380 | 450 | 534 | 610 | 762 | 915 | 1066 | 1220 | 1430 | 1560 | 1650 | 1760 | 1856 |
| Total height H (mm) | 762 | 838 | 1092 | 1270 | 1524 | 1778 | 2032 | 2362 | 2464 | 2566 | 2668 | 2769 | 2838 |
- Indirect heating reduces the need for large amounts of circulating air, leading to lower energy consumption. The dryer is insulated, which means that just 1.2 kg of steam is required to evaporate 1 kg of water when processing pastes
- The compact design reduces the overall size of the system while maximizing the heat transfer surface, resulting in shorter processing times and lower construction and operational costs
- Able to handle both heat-sensitive and high-temperature materials, the system uses different mediums like steam, thermal oil, and cooling water, offering flexibility for a variety of applications. It supports both continuous and batch operations
- Minimal air circulation means lower dust emissions and reduced solvent evaporation. In cases requiring solvent recovery or when handling hazardous materials, the system can be configured for closed-loop operation, reducing its environmental footprint
