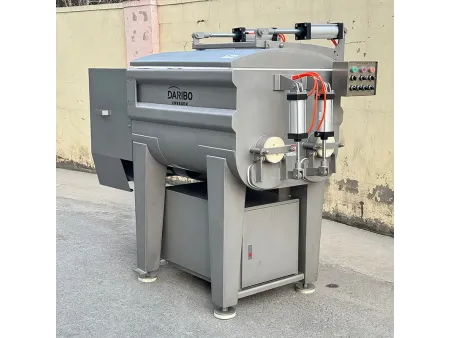

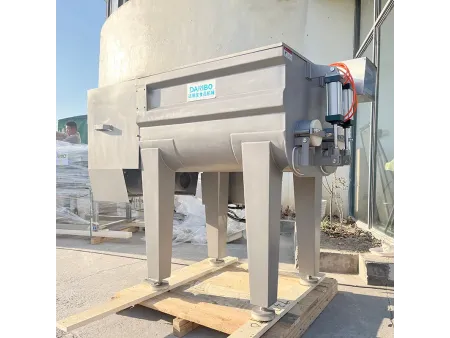

Double Paddle Meat Mixer
Meat Processing Equipment
Commercial meat mixing machine for homogeneous mixing of meat and food ingredients
- Volume 400-3000L
- Processing Capacity 280-2400 kilograms per cycle
Preparing large batches of ingredients requires mixers that deliver both efficiency and reliability, which is why our double paddle meat mixers are constructed from high-quality 304 stainless steel. This material ensures not only durability but also ease of maintenance, making them a dependable choice for demanding food processing environments. Inside the mixers, two stainless steel shafts equipped with paddles are independently controlled by dedicated motors. Each shaft can rotate in forward or reverse directions, and both the rotation direction and mixing time can be customized to suit specific production needs.
To ensure long-term performance, this series of double paddle mixers is equipped with electrical components from globally recognized brands such as Siemens, Schneider, and Omron. At one end of the mixers, dual discharge doors, operated by pneumatic cylinders, allow for quick and effortless emptying, controlled via intuitive control panels. The electrical boxes are sealed with rubber gaskets to provide excellent moisture resistance, making these meat processing machines ideal for demanding food processing environments. For easy maintenance, these commercial mixing machines can be cleaned directly with water, ensuring hygiene and reducing downtime.
Perfect for handling a variety of food ingredients, double paddle mixers are ideal for blending raw meats, marinades, sauces, and seasonings.
- Model: DRB-JB400
- Voltage: 380V, 50Hz
- Power: 3kW
- Volume: 400L
- Processing capacity: 280 kg/cycle
- Rotation speed: 32 rpm
- Dimensions (L×W×H): 1650×924×1450mm
- Weight: 450kg
- Model: DRB-ZJB400
- Voltage: 380V, 50Hz
- Power: 4.1kW
- Volume: 400L
- Processing capacity: 280kg/cycle
- Rotation speed: 32 rpm
- Vacuum degree: -0.085Mpa
- Dimensions (L×W×H): 1650×1085×1595mm
- Weight: 550kg
- Model: DRB-ZJB750
- Voltage: 380V, 50Hz
- Power: 7.1kW
- Volume: 750L
- Processing capacity: 500kg/cycle
- Rotation speed: 32 rpm
- Vacuum degree: -0.085Mpa
- Dimensions (L×W×H): 2100×1235×1840mm
- Weight: 1000kg
- Model: DRB-JB1500
- Voltage: 380V, 50Hz
- Power: 11kW
- Volume: 1500L
- Processing capacity: 800-1000kg/cycle
- Rotation speed: 32 rpm
- Dimensions (L×W×H): 2580×1455×1785mm
- Weight: 1200kg
- Model: DRB-ZJB3000
- Voltage: 380V, 50Hz
- Power: 26kW
- Volume: 3000L
- Processing capacity: 1500-2400kg/cycle
- Rotation speed: 10-40 rpm
- Vacuum degree: -0.085Mpa
- Dimensions (L×W×H): 3200×2000×3050mm
- Weight: 3280kg
