Industrial dryer for drying during mixing of powders for batteries

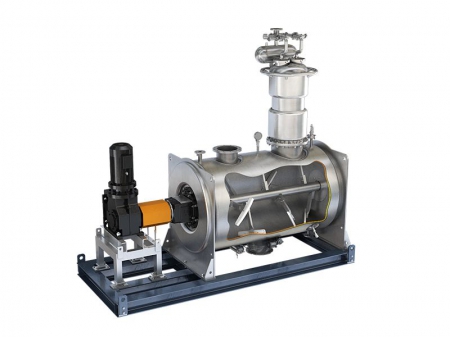

During the production process of high-nickel products in the lithium battery industry, material drying is an important step. S&L developed plough paddle dryer is an ideal choice for drying during mixing of powders for batteries. The cylindrical vessel with a heating jacket features an inlet, exhaust outlet, thermometer, pressure gauge, sampler, bottom discharge outlet, and other components.

Applications

Battery industry: drying during mixing of powders for batteries

Features

Full ceramic blades, resistant to wear

Short drying time, high efficiency

No contamination from metal impurities

Special titanium material used for the cylinder for enhanced wear and corrosion resistance, ensuring high quality

Suitable for high-temperature applications with a blowback discharge valve that eliminates dead corners

Special high-temperature resistant sealing for the main shaft to prevent material leakage

Optional high-temperature resistant design for the choppers and sealing (optional)

Mature filter backwash design

Specifications

Model	Powder (kW)	Chopper Quantity	Working Volume (dm³)	Empty Weight (kg)
LPH-1	18.5	2	0.6	2350
LPH-2	30	3	1.2	3550
LPH-3	37	3	1.8	4500
LPH-4	45	4	2.4	5600
LPH-5	55	4	3.0	6900
LPH-6	55	4	3.6	7550

Usually 45 to 90 days following the confirmation of the design drawings.

We can conduct paid tests for the finished equipment. We invite you to prepare the materials used for equipment test, and we are confident that the mixing result will meet your needs.
