CBR Loading Press

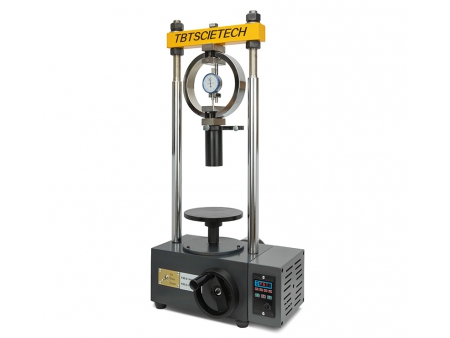

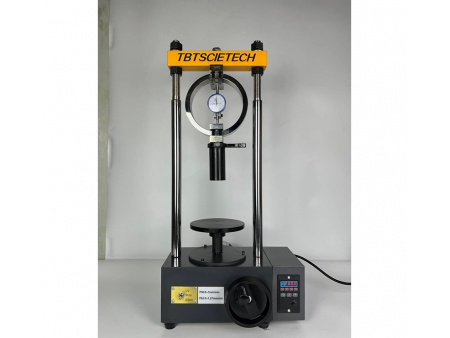

TBTCBR-2C is engineered for California Bearing Ratio (CBR) penetration tests on soil samples. This CBR testing machine is equipped with a frequency converter for 60Hz operation and features an optimized frame with a maximum load capacity of 50kN. The structure maintains a stable center of gravity during loading, while the large working stroke facilitates convenient operation in laboratory testing.
The central axis can be raised and lowered by motor drive for CBR penetration testing. The testing machine is also equipped with a handwheel for manual penetration when direct operator is required.
| Max. test load | 50kN |
| Load measuring device | Proving ring |
| Low-speed central axis lifting | 1mm/min and 1.27mm/min |
| Max. axis stroke | 100mm |
| Speed switching mode | Stop the motor before switching speed |
| Power supply | 220 VAC, 50/60 Hz |
TBTCBR-III digital CBR testing machine is designed to evaluate the California Bearing Ratio (CBR) of highway sub-bases and subgrades. It features variable compression speeds with a maximum load capacity of 50kN, and is suitable for testing materials with maximum particle sizes ranging from 25mm to 40mm.
| Max. load capacity | 50kN |
| Load accuracy | 0.001kN |
| Loading speed | 1 – 15mm/min |
| Displacement sensor | Measuring range: 0 – 25mm |
| Resolution: 0.01mm | |
| Data transmission | RS232 |
| Penetration piston diameter | Ø50mm |
| Dimensions | Approx. 57 × 46 × 102 cm |
| Weight | ± 87kg |
| Power supply | 220V, 50/60Hz |
CBR Test Apparatus is suitable for test of soils and mix materials (the grain size of the soil is less than 40mm) compacted with CBR mold so as to confirm the bearing loading ability of pavement, roadbed, subcrust as well as material layer of the roadbed to be designed. It consists of a twin column frame, proving ring, penetration bar, loading plate, micrometer, measuring device for swell increment etc. and easy to operate.
| Product Model | CBR-1 |
| Capacity | 30kN, 50kN (selectable) |
| Load speed | 1.0mm/min. |
| Penetrating bar | Ø50mm x 100mm |
| Platen size | Ø170mm |
| Platen travel | 50mm |
| Mold | Ø152mm x 170mm |
- Main machine 1set
- Proving ring 1pc
- Penetration bar 1 set
- Instruction book 1 copy
- Certificate of Quality 1copy
This is Multispeed analogue type CBR machine, having selectable speed rates of 1mm/min and 1.27mm/min.
It features a rigid two column frame with upper crossbeam, which can be adjusted in height and locked in position with locknuts.
The drive force is provided by a mechanical jack housed in the base cabinet
| Multispeed | 1mm/min, 1.27mm/min |
| Max capacity | 50KN |
| Penetration bar | Diameter of Platen:Ф50±0.05mm. Length100mm |
| Power | AC220V±10％ 50Hz |
- Main machine 1set
- Proving ring 1pc
- Penetration bar 1 set
- Instruction book 1 copy
This Field CBR test set is used in site to test CBR value to determine quickly and efficiently the bearing capacity of soils on road constructions, foundations, road subgrades etc
| Product Model | TBTLCB-2 |
| Hydraulic jack | 100kN |
| Capacity | 60kN |
| Penetrating rod | Ø50mm x 200mm |
| Bearing plate | 1.25kg/ea. |
- GB, BS standard moulds are available
- CBR Mould with perforated base plate, ASTM
- Bottom (CBR mould)
- Solid Base Plate for CBR Mould, ASTM
- Spacer Disc with T handle , ASTM
- Annular Surcharge weight 2270g, ASTM
- Slotted Surcharge weight 2270g, ASTM
- Slotted Surcharge weight 2270g, ASTM
- Tripod, dial gauge supporte
- Tripod, dial gauge supporte
- Steel rule 300mm long, grad. 0.5mm
Dial gauge 25mm range, 0.01mm sub div.
Filter screen, stainless steel, dia.149mm, mesh 0.150mm
Filter paper dia. 150mm, pack of 100Pcs
