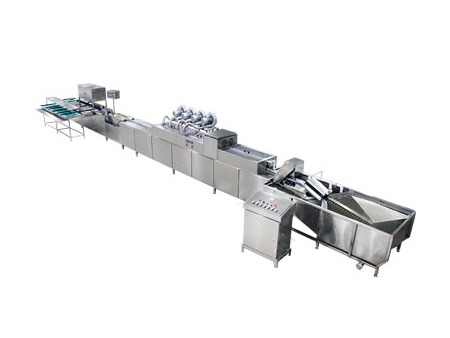

302BS Duck Egg Processing Line with Water Bath Loading & Washing & Grading (10,000 EGGS/HOUR)
ZENYER 302BS egg processing line is comprised of the and the , and includes water bath loading, washing, drying, candling, grading & counting and manual collection. It has an adjustable capacity and can reach maximum capacity of 10,000 eggs/hour.
The water bath loading not only saves time but also minimizes egg cracks by using buoyancy.
This egg processing line is specially designed for DUCK egg processing, and the processing line ends up with packing washed eggs manually.

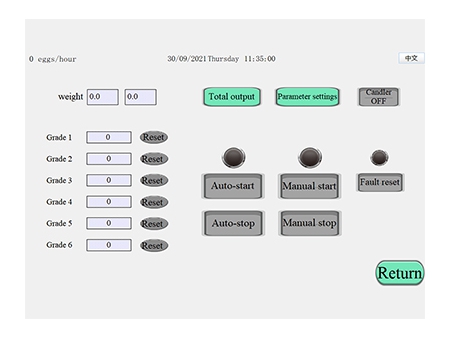

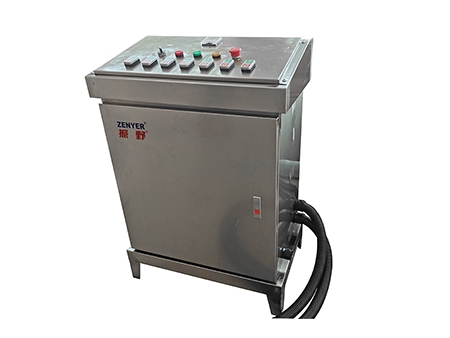

The 302BS egg processing line has a PLC control system with a touch screen, enabling you to easily set the grading specifications, calibrate the accuracy, accumulate quantities, and alarm and diagnose any malfunctions that may occur.
| Product code | Duck egg processing line |
| Product code | 302BS |
| Model | ZYL-YS1-D1-P |
| Capacity | 10,000 eggs/hour |
| Main material | Stainless steel |
| Power* | 12.43KW |
| Voltage* | 380V, 50Hz, 3-phase |
| Dimension (L*W*H) | 11.9*3.4*2 M |
| Net weight* | 700KG |
| Gross weight* | 1350KG |
| Function | Water bath loading, washing , drying, candling, grading & counting and manual collection table |
Notes

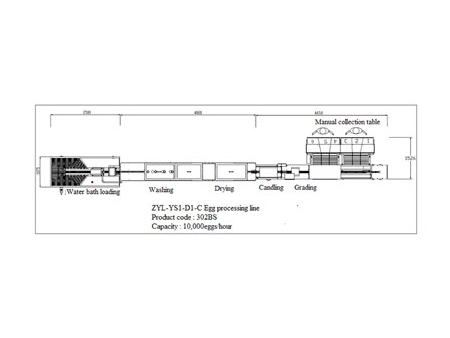

* Grade, power, net weight and gross weight are calculated according to the floor plan above.
* The voltage and frequency may be different due to different countries. For more details of electrical data sheet, please check with the ZENYER representatives.
- Water bath loading
- Washing
- Drying
- Candling
- Grading & counting
- Manual collection table
Pour several trays of eggs into the water bath. The eggs will then be transported into the washer by a single line conveyor. This loading method is easier to load, minimizes egg cracks and pre-rinses the egg for a better washing.
- Before washing
- After washing

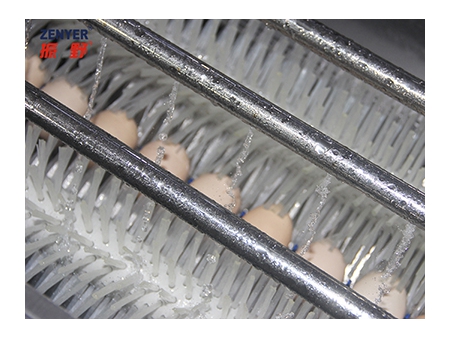

The eggs will be cleaned by brushes with warm water (customer provides). Brush modules are flexible, and adjustments can be made on brush distance, position and speed.
Water on the eggs will be swept off by the brushes, meanwhile the eggs themselves are dried by the drying system. The drying rate can reach up to 99%, depending on the environmental humidity.
Washed eggs will run through the candling section to check for leaking, dirty or cracking after the process of drying.

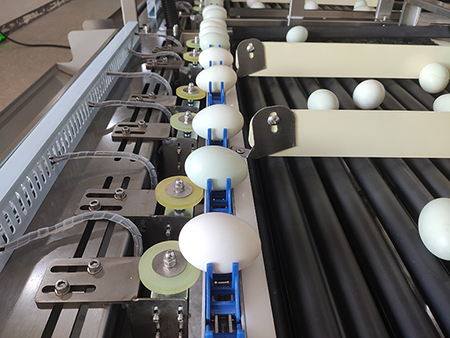

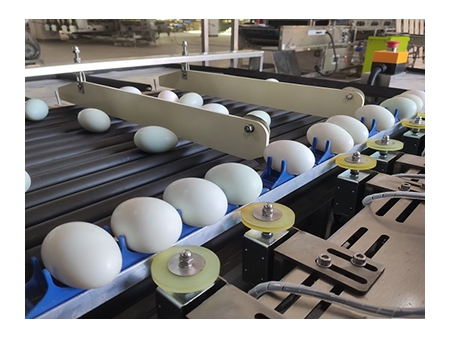

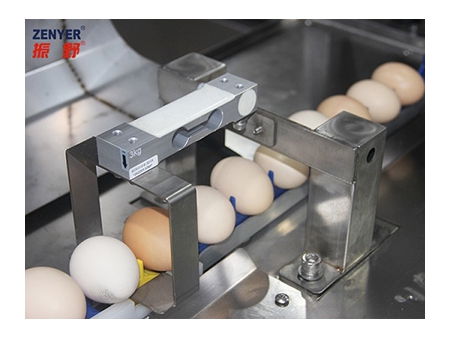

Eggs are weighed electronically and graded into 4 grades. You can easily adjust the grading specification on the screen of control panel. This model of grader has a counting function as well, you can check how many eggs of each grade and total output per shift have been processed.
Some of the other graded eggs drop onto the table (without motor), and you can collect the eggs manually from that table. The table can be split into two sections and support two egg sizes if needed.
