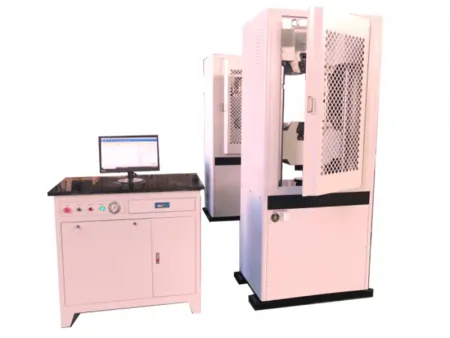

Servo Control Universal Testing Machine
The servo control universal testing machine is used to test tension, compression, shearing force, adhesion, peeling force, tear strength, etc. of specimen, semi-product and finished product in the fields of rubber, plastic, metal, fabric, paper, electric appliance, automobile, etc. This testing equipment is the effective tool for input quality con troll (I.Q.C), quality control (Q.C.), physical inspection, mechanics research and material development.
High Accuracy
AC servo motor is adopted to drive high precision ball screw transmission. Equipped with high precision explosion-proof load cell, force and displacement accuracy is up to 0.25% and 0.001mm respectively.
High Performance
- Automatic identification of fracture
- Automatic return
- Free switch among units
- 9 languages optional: simplified/traditional Chinese, English, Japanese, German, France, Russian, Spanish and Portuguese.
Superior Software Program
Implementing closed-loop control of force value, speed and location meets the requirements for low-cycle fatigue test and material retention force (constant stress) test. Test data and results are recorded throughout the process. Multi-graph analysis covers stress-strain graph, force-deformation graph, force-displacement graph, force-time graph and force-deformation graph.
Multi-function
When working with different fixtures, this servo control universal testing machine can be used for various tests such as tensile, compression, bending, shearing, tear and peel test.
| Model | CZ-8000A | ||
| Capability(optional)(kN) | 50 | 100 | 200/300 |
| Unit(Switchable) | N, kN, kgf, lbf, Mpa, Lbt/ln², kgt/mm² | ||
| Load Resolution | 1/500000 | ||
| Accuracy Grade of Machine | 0.5 Level | ||
| Load Magnifying Rate | Section-less | ||
| Max. Stroke(exclude the grips) | 1200mm 1100mm | ||
| Effective Width | 500mm, others (Customized) | 550mm, others (Customized) | |
| Test Speed(mm/min) | 0.001-500 | 0.001-300 | |
| Speed Accuracy | ±0.25% | ||
| Displacement Resolution（mm) | 0.00004 | ||
| Software | Closed-loop control software | ||
| Motor | Servo motor | ||
| Transmission Rod | High accuracy of ball screw | ||
| Main Unit Dimension (WxHxD) (mm) | 1022x700x2000 | 1080x700x2340 | 1120x700x2520 |
| Power | AC/22050HZ 15A or specified by users | ||
