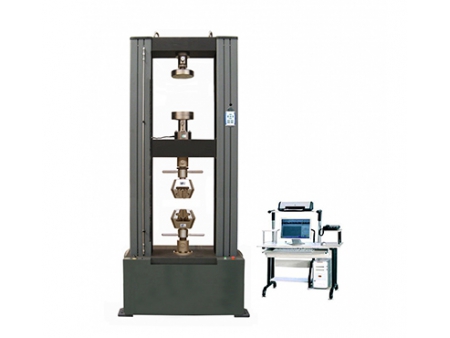

Computer Control Electronic Universal Testing Machine
Request a Quote
TBTWDW-200H
Mainly used to perform tension, compression, bending and other mechanical property indexes for metallic, nonmetallic and composites
Technical Parameters
| No. | Items | Technical Specification |
| 1 | Max. Test force | 200KN |
| 2 | Load class | Class 0.5 |
| 3 | Measuring range of load | 1%-100% |
| 4 | Relative error of indicating value | Within ±1.0% |
| 5 | Load resolution | 1/±300000F.S (with unchanged resolution during the whole test) |
| 6 | Measuring range of deformation | 0.2%-100% |
| 7 | Adjusting range of load rate | 0.005%-5%FS/S |
| 8 | Control precision of load rate | Within ±1% |
| 9 | Adjusting range of deformation rate | 0.005-5%FS/S |
| 10 | Control precision of deformation rate | Within ±1% |
| 11 | Adjusting range of displacement rate | 0.001-500mm/min |
| 12 | Control precision of displacement rate | Within ±0.2% of the set value |
| 13 | Stroke of cross head(without grips) | 1200mm |
| 14 | Effective test span | 610mm |
| 16 | Control mode | Computer control |
| 17 | Power supply | 380V, 50Hz |
| 18 | Power | 5.0kW |
| 19 | Dimension (L*W*H) | 1050*750*2600mm |
| 20 | Weight | Approx.1600kg |
