EME10 Carbide, 2 Flute Helix Taper for RIB Processing

EME10 Carbide, 2 Flute Helix Taper for RIB Processing
EME10 Carbide, 2 Flute Helix Taper for RIB Processing
EME10 Carbide, 2 Flute Helix Taper for RIB Processing
EME10 Carbide, 2 Flute Helix Taper for RIB Processing
Request a Quote
  • Designed for deep cavity profiling, deep slotting and pocketing
  • High performance end mills for machining aluminum alloy, copper alloy, graphite, resin and non-ferrous material
  • Taper neck angle available from 0.5°~15°
  • 2 flute tapered carbide carving bits suit for working with CNC 2D/3D carving & engraving router machines.

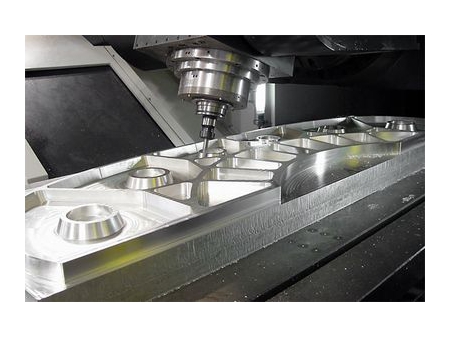

Application
Product Specifications
Coating Non-Coated or TiN, TiCN & TiAIN Work Material Aluminum Alloy / Copper Alloy / Graphite / Resin, etc.
Helix Angle / Shank Cylindrical H6
Material IMC™ Carbide Rod Tolerance on Cutting Diameter 0-0.030

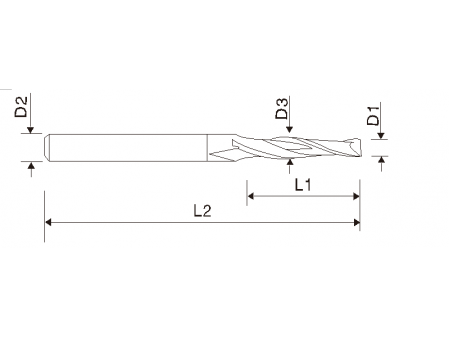

Carbide, 2 Flute Tapered Rib Cutter, for RIB Processing (UNT-EME10)
Unit: mm
UNT EDP # Click to Order Mill Dia.
D1
Taper
Angle(°)
Shank Dia.
D2
Flute length
L1
O.A.L
L2
Flutes
EME1000025 3.0 0.5 4 10 50 2F
EME1000026 3.0 1 4 10 50 2F
EME1000027 3.0 1.5 4 10 50 2F
EME1000028 3.0 2 4 10 50 2F
EME1000029 3.0 3 6 10 50 2F
EME1000030 3.0 5 6 10 50 2F
EME1000031 3.0 7 8 12 60 2F
EME1000032 3.0 10 8 12 60 2F
EME1000033 4.0 0.5 6 15 50 2F
EME1000034 4.0 1 6 15 50 2F
EME1000035 4.0 1.5 6 15 50 2F
EME1000036 4.0 2 6 15 50 2F
EME1000037 4.0 3 6 15 50 2F
EME1000038 4.0 5 8 15 60 2F
EME1000041 5.0 0.5 6 20 50 2F
EME1000042 5.0 1 6 20 50 2F
EME1000043 5.0 1.5 6 20 50 2F
EME1000044 5.0 2 8 20 60 2F
EME1000045 5.0 3 8 20 60 2F
EME1000046 5.0 6 10 20 75 2F
EME1000048 5.0 10 12 20 75 2F
EME1000050 2.0 3 4 6 50 2F
EME1000051 2.0 7 6 6 50 2F
EME1000052 2.0 5 6 6 75 2F
EME1000053 2.0 10 8 6 60 2F
EME1000054 3.0 3 8 10 75 2F
EME1000055 3.0 7 10 10 75 2F

• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
