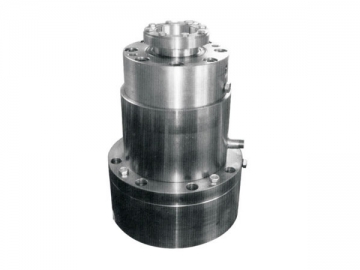

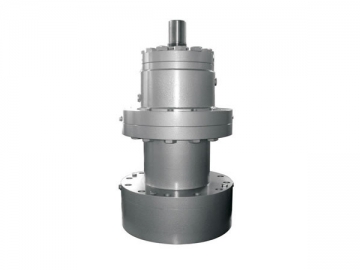

High Temperature and High Pressure Mechanical Seal

High Temperature and High Pressure Mechanical Seal
High Temperature and High Pressure Mechanical Seal
High Temperature and High Pressure Mechanical Seal
Request a Quote
  • Type 207.BII Mechanical Seal
  • Type 208 Mechanical Seal
  • Type 209/210 Mechanical Seal
TypeType 207.BII Type 208 Type 209/210
Pressure0.1~4.0MPa 0.1~6.4MPa 209: 0.1~10MPa
210: 0.1~16MPa
Temperature-40~180℃ (350℃) When the temperature is greater than 180℃, a high water tank is required to set and the mounting height L1 should be heightened by 80mm. -40~180℃ (350℃) -40~180℃ (350℃)
Rotational speed< 2m/s < 5m/s < 5m/s
MediumOil, water, weak base, weak acid, flammable, explosive, and toxic gases, etc.Propylene, toluene, potassium metal, acid, alkali, polymer suspensionPropylene, toluene, potassium metal, acid, alkali, polymer suspension
Remark When using this product, a pressure balancing device is required.A pressure balancing device is necessary when using this product.

The mechanical seal is a device used to prevent fluid leakage. The high temperature and high pressure mechanical seal produced by our company can be used to seal oil, water, weak base, weak acid, flammable, explosive, and toxic gases, propylene, toluene, potassium metal, acid, alkali, polymer suspension, etc. The working temperature is between -40℃ and 180℃, and the rotational speed is less than 2m/s.

Made of materials resisting high temperature and pressure, our product has excellent stiffness, strength and impact resistance. It has a small coefficient of friction and good self-lubricating properties. Even if a short period of interfacial friction occurs, the seal face will not be damaged. When using this product, a pressure balancing device is required. This can effectively ensure the safety and stability of the product.

As a specialized high temperature & high pressure mechanical seal manufacturer in China, Miyou Group provides a wide array of products, including bottom agitating mechanical seal, metallic nanometer powder, jet mill system, Air Classifier System, and more.
