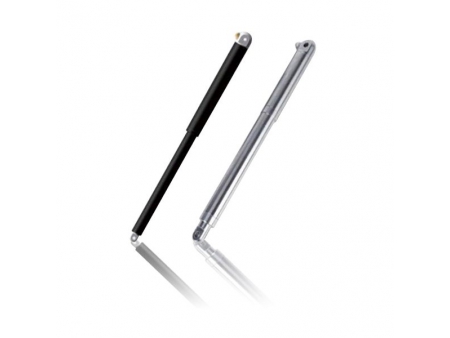

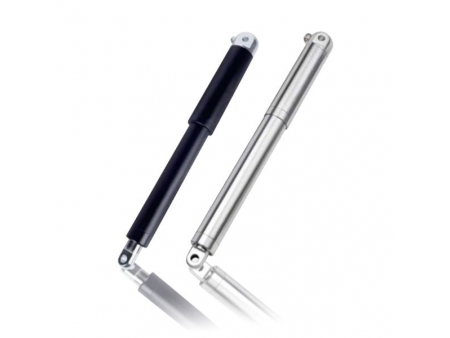

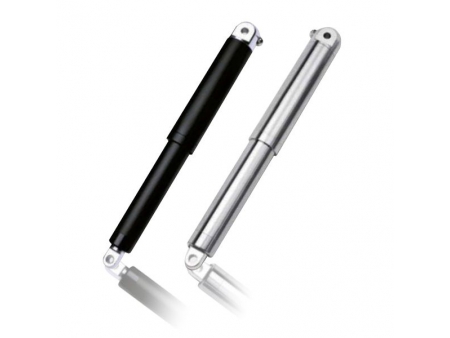

Pen Linear Actuator
Request a Quote
Pen linear actuators are often chosen for their unique design. Their slim design shape allows this linear actuator to accommodate more compact spaces and space-limited applications. For projects with limited installation sizes, this makes the pen linear actuator an attractive solution. Similarly, adopting high-quality materials and advanced technology, pen electric linear actuators feature long durability and excellent performance. Its smooth and quiet operation provides precise push-pull control, ensuring efficient operation and accurate positioning of the equipment. Easy installation and low maintenance make it ideal for a variety of precision applications.

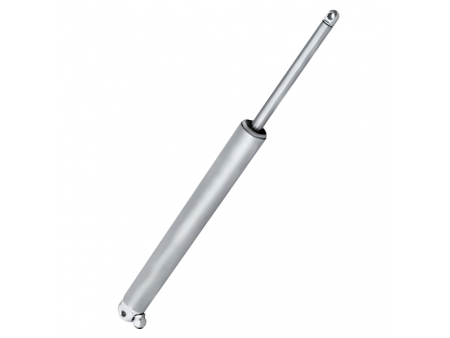

- RG60 Pen Linear Actuator

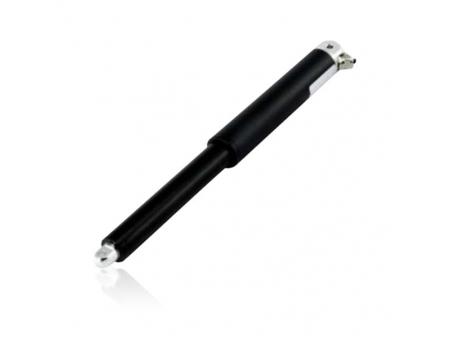

- YXN021 Pen Linear Actuator

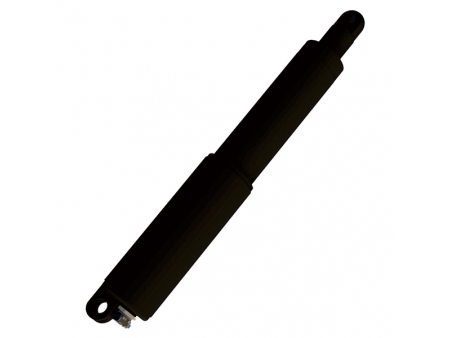

- YXN021B Pen Linear Actuator

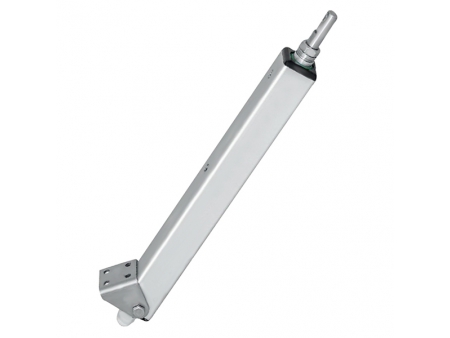

- YXN024A Electric Linear Actuator
- YXN024B Electric Linear Actuator
- YXN024C Electric Linear Actuator
- YXN024D Electric Linear Actuator
RG60 Pen Linear Actuator
Specifications
| Types | L x W (in) | Applicable boat length (ft) | Motor type |
| RG60-601 | 9’’ x 8’’ | 12-16 | 2 |
| RG60-602 | 9’’ x 10’’ | 14-18 | 2 |
| RG60-603 | 10’’ x12’’ | 16-25 | 2 |

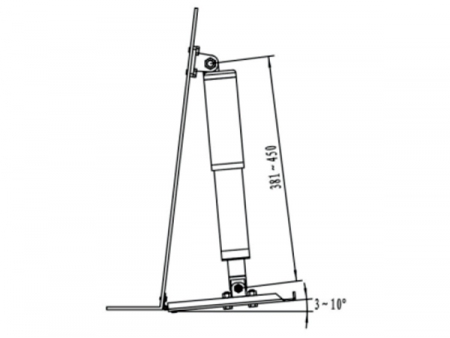

| Parts | A | 1 | L |
| Dis(mm) | 52 | 381 | 425 |

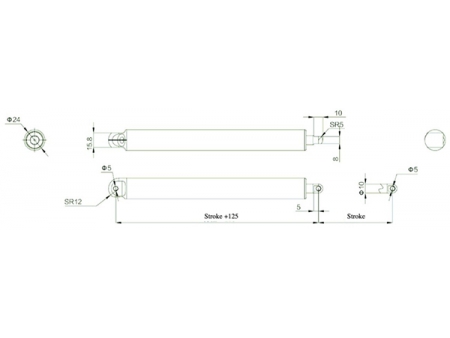

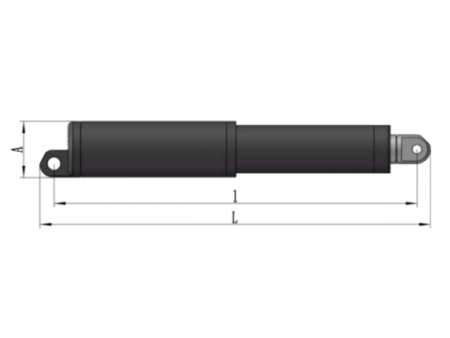

Dimensions
YXN021 Pen Linear Actuator
Specifications
| Input voltage | 12V/24V/48V DC |
| Maximum load | 1000 N |
| No-load speed | 3-25 mm/s |
| Stroke | Customized |
| Duty cycle | 10%, 2min. On/18min. Off |
| Environment temperature | -15℃-45℃ (customized available) |
| IP grade | IP54 |
| Stroke switch | √ |

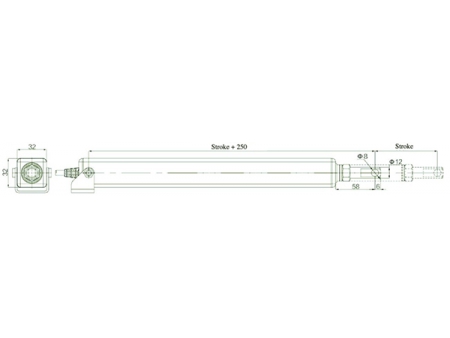

Dimensions
YXN021B Pen Linear Actuator
Specifications
| Input voltage | 12V/24V/48V DC |
| Maximum load | 120 N |
| No-load speed | 8.5 mm/s |
| Stroke | Customized |
| Duty cycle | 10%, 2min. On/18min. Off |
| Environment temperature | -25℃-65℃ (customized available) |
| IP grade | IP54 |
| Stroke switch | √ |
Dimensions
