YXN024B Pen Linear Actuator
Request a Quote
The YXN024B electric actuator has a built-in limit switch to effectively control the linear actuator movement. A reliable and efficient electric linear actuator with robust design for high efficiency, Hall effect sensor positioning and synchronization. YXN024B stainless steel is also suitable for use in yachts, agricultural and medical machinery, electric wheelchairs, electric windows and smoke extraction windows, as well as mine cars, agricultural irrigation facilities, solar energy, can multi-electric linear actuator linkage and accurate synchronization.
Applications

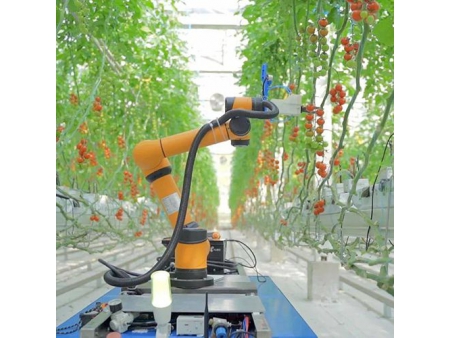

- Agricultural robot

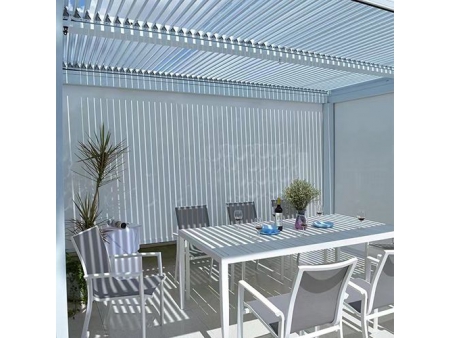

- Sun shading device
- Recreational vehicle

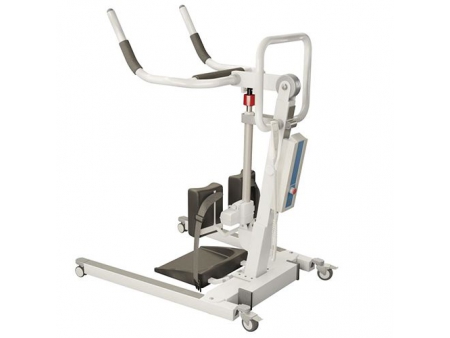

- Rehabilitation equipment

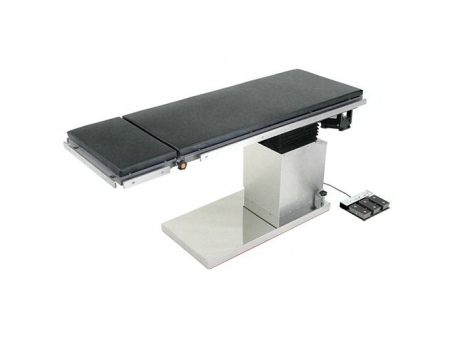

- Electric medical table
Specifications
| Voltage | 12V | 24V |
| No-load current | ≤0.8A | ≤0.4A |
| Load current | ≤4A | ≤2A |
| Maximum power | 50W | |
| Outer tube material | 6063 aluminum | |
| Ball screw material | T-shaped steel | |
| Expansion tube material | 304 stainless steel | |
| Nut material | Copper | |
| Duty cycle (S2) | Work for 2 minutes and rest for 18 minutes | |
| Service life | ≥10k | |
| IP level | IP66/67 | |
| Operating temperature | -20℃~60℃ | |
| Storage temperature | -20℃-60℃ | |
| Noise level | 60dB | |
| Linear clearance | 0.5mm-1mm | |
| Standard color | Black | |
| Certification | CE | |
| Joint standard | No connector | |
| Wire length | 1m | |
Technical Data
| Maximum load (N) | 100 | 300 | 400 | 600 | 800 | 1200 | 1800 | 2300 | |
| Self-locking force (N) | 150 | 600 | 600 | 1600 | 1600 | 1800 | 3600 | 3450 | |
| Standard | No-load speed (mm/s) | 25 | 18 | 12 | 12 | 12 | 6.8 | 4.5 | 3.5 |
| Load speed (mm/s) | 17 | 14 | 13 | 8.5 | 8 | 5 | 3 | 2.5 | |
| Low noise | No-load speed (mm/s) | 25 | 16.5 | 10.5 | 7 | 8.5 | 5 | 3.3 | 3.3 |
| Load speed (mm/s) | 20 | 14 | 200 | 250 | 7 | 4.5 | 3 | 2.5 | |
| Stroke (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | |
| Weight (kg) | 0.85 | 0.95 | 1.05 | 1.15 | 1.15 | 1.35 | 1.45 | 1.65 | |
Dimensions
Mounting bracket
Minimum Installation Distance (Stroke Length)
| When Stroke ≤ 400 | mm | Standard | With Hall board | With overcurrent protection | |||
| Normal/ waterproof | Silent model | Normal/ waterproof | Silent model | Normal/ waterproof | Silent model | ||
| ≤ 800N | L S | 200 S | 210 A | 220 S | 220 S | 220 S | 230 S |
| A | 128.5 | 138.5 | 148.5 | 148.5 | 148.5 | 158.5 | |
| >800N | L S | 210 S | 220 S | 230 S | 230 S | 230 S | 240 S |
| A | 138.5 | 148.5 | 158.5 | 158.5 | 158.5 | 168.5 | |
| When Stroke > 400 | mm | Standard | With Hall board | With overcurrent protection | |||
| Normal/ waterproof | Silent model | Normal/ waterproof | Silent model | Normal/ waterproof | Silent model | ||
| ≤ 800N | L S | 235 S | 245 A | 235 S | 245 S | 235 S | 245 S |
| A | 148.5 | 158.5 | 148.5 | 158.5 | 148.5 | 158.5 | |
| >800N | L S | 245 S | 255 S | 245 S | 255 S | 245 S | 255 S |
| A | 158.5 | 168.5 | 158.5 | 168.5 | 158.5 | 168.5 | |
What We Can Customize
- Wire length
- Stroke length
- Installation dimension
- Front and rear mounting joint
- Color and surface treatment
