YXN024D Pen Linear Actuator
Request a Quote
YXN024D is a powerful electric actuator with a maximum load of 10,000N. It has a simple design and high load. It has brushless motors and brushed motors to choose from. It has a wide range of applications, has a high protection level of IP67 and is fully synchronized. It is an ideal driving actuator for electric skylights, chimney systems, yacht automation and agricultural machinery solar panels tracking the sun and other outdoor applications. The outer casing can be made of stainless steel or aluminum alloy. The product has a full appearance, corrosion resistance, acid and alkali resistance, and is ideal for use in harsh environments. Great support for powerful equipment.
Applications

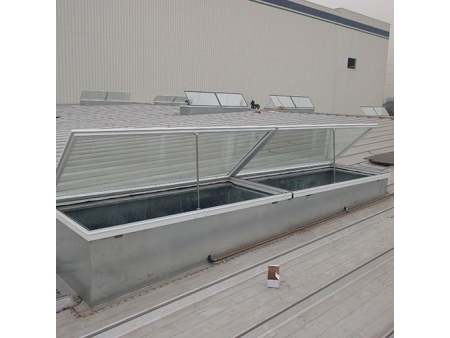

- Electric skylight
- Agricultural robot
- Industrial robot
Specifications
Voltage | 12V | 24V |
No-load current | ≤1.5A | ≤0.7A |
Load current | ≤10A | ≤5A |
Maximum power | 120W | |
Outer tube material | 6063 aluminum | |
Ball screw material | T-shaped steel | |
Expansion tube material | 316 stainless steel | |
Duty cycle (S2) | Work for 2 minutes and rest for 18 minutes | |
Service life | ≥10k | |
IP level | IP66/67 | |
Operating temperature | -20℃~60℃ | |
Storage temperature | -40℃~70℃ | |
Noise level | 75dB | |
Linear clearance | 0.5mm-1mm | |
Standard color | Black/Silver | |
Certification | CE | |
Joint standard | No connector | |
Standard front end connector | Type O | |
Wire length | 1m |
Technical Data
Maximum load (N) | 300 | 1200 | 1800 | 3000 | 4500 | 5000 | 6000 |
Self-locking force (N) | 600 | 2400 | 3600 | 6000 | 8000 | 7500 | 8000 |
No-load speed (mm/s) | 88 | 24 | 16 | 9.6 | 6.4 | 4.8 | 4.8 |
Load speed (mm/s) | 55 | 15 | 10 | 6 | 4.5 | 3.3 | 3 |
Dimensions
Mounting Bracket
Minimum Installation Distance (stroke length)
Travel switch | With Hall sensor feedback | With overcurrent protection |
Stroke 305mm (201) | Stroke 325mm (221) | Stroke 325mm (221) |
What We Can Customize
- Wire length
- Stroke length
- Installation dimension
- Front and rear mounting joint
- Color and surface treatment
