YXN024C Pen Linear Actuator
Request a Quote

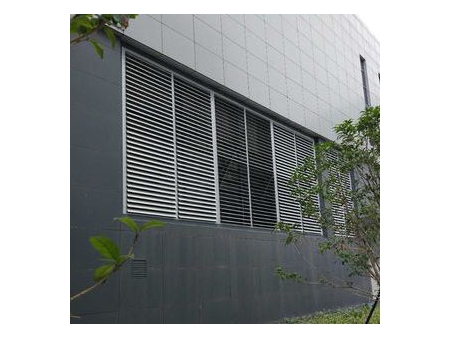

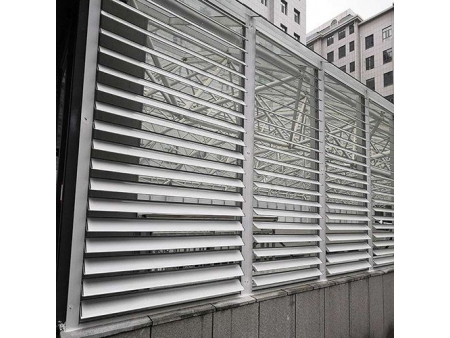

YXN024C has an elegant and compact design, precise positioning, and high protection level. Suitable for harsh outdoor environment requirements. It is mainly used in building ventilation windows, outdoor vertical sunshade louvers, etc. It is used in large airports, train stations, theaters, and other public places.
Applications
Specifications
| Voltage | 12/24VDC |
| No-load current | ≤0.8A |
| Load current | ≤0.8A |
| Maximum power | 160W |
| Stroke | 100-600mm (special stroke length can be customized) |
| Limit switch | Built-in |
| Installation length | Stroke 410mm |
| Noise level | ≤56dbB |
| IP level | IP67/IP69 |
| Linear clearance | 0.5-1mm |
| Duty cycle (S2) | Work for 2 minutes, rest for 18 minutes |
| Service life | ≥10000 cycles |
| Operating temperature | -20℃~85℃ |
| Storage temperature | -40℃~70℃ |
| Ball screw material | #45 Steel |
| Expansion tube material | 304 stainless steel |
| Nut material | Copper |
| Standard color | Black |
| Standard wire length | 1 m (special length can be customized) |
| Certification | CE |
| Optional configuration | Outer tube (aluminum) Outer tube (stainless steel) |
Load and Speed
| Maximum load (N) | 100 | 300 | 400 | 600 | 800 | 1200 | 1800 | 2300 | |
| Self-locking force (N) | 150 | 600 | 600 | 1600 | 1600 | 1800 | 3600 | 3450 | |
| Standard | No-load speed (mm/s) | 25 | 18 | 12 | 12 | 12 | 6.8 | 4.5 | 3.5 |
| Load speed (mm/s) | 17 | 14 | 13 | 8.5 | 8 | 5 | 3 | 2.5 | |
| Low noise | No-load speed (mm/s) | 25 | 16.5 | 10.5 | 7 | 8.5 | 5 | 3.3 | 3.3 |
| Load speed (mm/s) | 20 | 14 | 200 | 250 | 7 | 4.5 | 3 | 2.5 | |
| Stroke (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | |
| Weight (kg) | 0.85 | 0.95 | 1.05 | 1.15 | 1.15 | 1.35 | 1.45 | 1.65 | |
Dimensions
Mounting bracket
What We Can Customize
- Wire length
- Stroke length
- Installation dimension
- Front and rear mounting joint
- Color and surface treatment
