YXN024A Pen Linear Actuator
Request a Quote
YXN024A can have a built-in limit switch and an overcurrent protection circuit or a built-in limit switch and Hall feedback; the maximum outer diameter is 26mm, and the maximum push-pull force is 500N. It is very suitable for installations that have high requirements for both installation space and load. In application, with the highest protection level of IP66/1P67, YXN024A has good outdoor performance and good environmental adaptability.
Applications

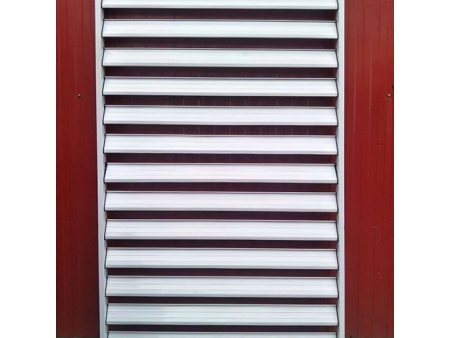

- Electric louver

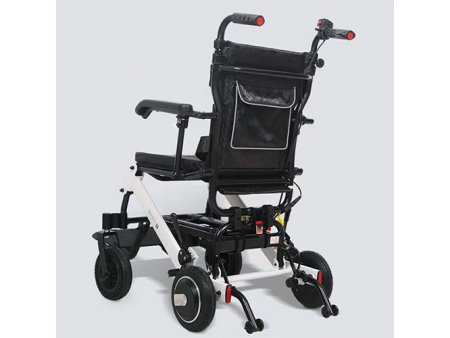

- Electric wheelchair

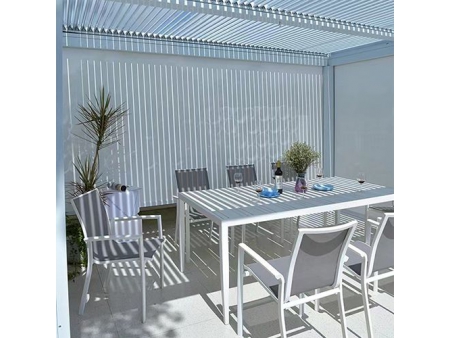

- Electric Pergola

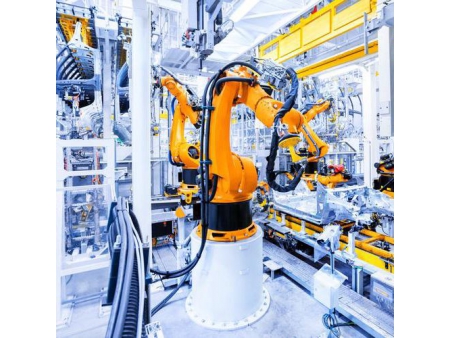

- Industrial robot
Specifications
Voltage | 12V | 24V |
No-load current | 0.4A | ≤0.2A |
Load current | 1.5A | ≤0.7A |
Maximum power | 15W | |
Stroke | 20-200mm (special stroke length can be customized) | |
Limit switch | Optional | |
Noise level | ≤62dbB | |
IP level | IP66/IP67 | |
Optional configuration | Overcurrent protection/Hall sensor feedback | |
Duty cycle (S2) | 10%, work 2 minutes, rest 18 minutes | |
Service life | ≥10000 cycles | |
Operating temperature | -20℃-60℃ | |
Storage temperature | -20℃-60℃ | |
Screw and material | #45 Steel | |
Expansion tube material | 304 stainless steel | |
Nut material | Copper | |
Standard color | Black | |
Standard wire length | 1m(Special length can be customized) | |
Certification | CE |
Stroke and Weight
Stroke (mm) | 50 | 100 | 150 | 200 |
Weight (kg) | 0.3 | 0.35 | 0.4 | 0.45 |
Load and Speed
Thrust (N) | Tension (N) | Self-locking force (N) | Rated load speed (mm/s) | No-load speed (mm/s) |
100 | 100 | 150 | 11.5 | 16 |
250 | 250 | 375 | 7.5 | 11 |
500 | 500 | 500 | 4 | 6 |
Minimum Installation Distance (stroke length)
Travel switch | With Hall sensor feedback | With overcurrent protection |
Stroke 170mm | Stroke 190mm | Stroke 190mm |
Dimensions
Mounting bracket
What We Can Customize
- Wire length
- Stroke length
- Installation dimension
- Front and rear mounting joint
- Color and surface treatment
