A pressure sensor is designed to measure pressure in water, gas, and oil in HVAC systems. As a professional HVAC component manufacturer, we offer a variety of pressure sensors for HVAC applications, including wall mounted boilers and gas furnaces.

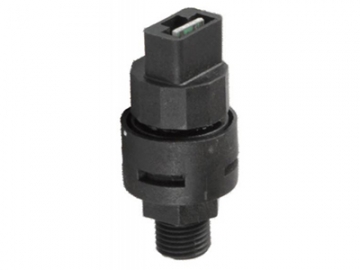

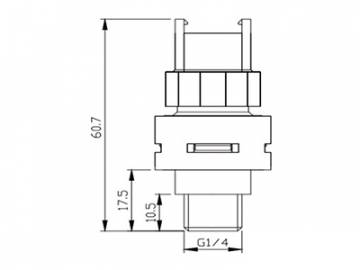

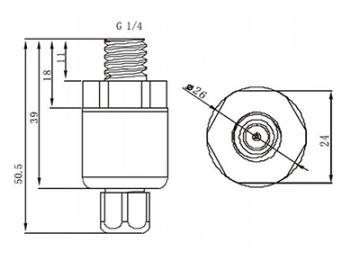

HDYL-400A-S Pressure Sensor

Range	0~0.4~1.6MPa
Static accuracy	±1.0% FS
Measurable media	non-corrosive gas, water, oil
Rate load	0~4bar/6bar/8bar/10bar/16bar optional
Rated output	0.4~4.5V DC (default)/0.5~3.5V DC
Operating voltage	5.0±0.5V DC
Operating temperature range	-40℃~ 120℃
Compensated temperature range	0℃~ 100℃
Storage temperature range	-40℃~ 120℃
Ultimate load	200%FS
Long-term stability	±1.5%FS
Pressure cycles	＞100000
Protection class	IP65
Pressure interface	G1/4 (default) or other (please specify it while ordering)

Application: pressure measurement of water and gas for wall-mounted boilers and gas furnaces

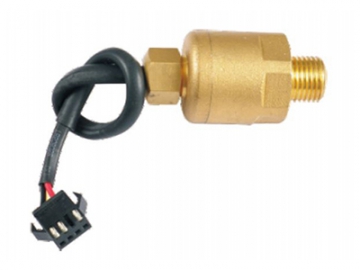

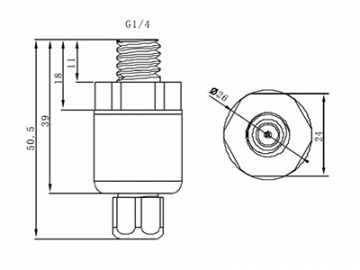

HDYL-400A-T Pressure Sensor

Range	0~0.4~1.6MPa
Static accuracy	±1.0% FS
Measurable media	non-corrosive gas, water, oil
Rate load	0~4bar/6bar/8bar/10bar/16bar optional
Rated output	0.4~4.5V DC (default)/0.5~3.5V DC
Operating voltage	5.0±0.5V DC
Operating temperature range	-40℃~ 120℃
Compensated temperature range	0℃~ 100℃
Storage temperature range	-40℃~ 120℃
Ultimate load	200%FS
Long-term stability	±1.5%FS/year
Pressure cycles	＞100000
Protection class	IP65
Pressure interface	G1/4 (default) or other (please specify while ordering)

Application: pressure measurement of water and gas for wall-mounted boilers and gas furnaces

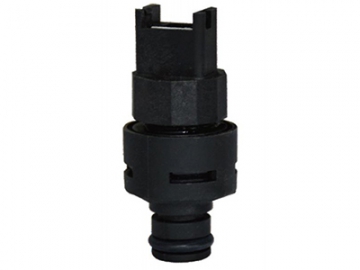

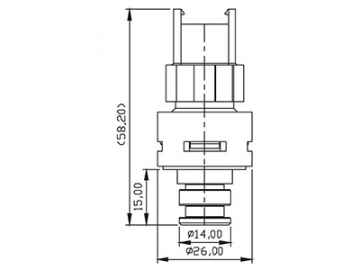

HDYL-400B-S Pressure Sensor

Input voltage	5±0.2V DC
Input current	＜10mA
Working pressure	0-3.5bar; max.:4.5bar
Burst pressure	9bar
The output voltage linear measurement points	5V, 20℃
Output voltage linearity deviation	5V, 20℃
Interface	φ14 fast jack or customized according to customer requirements
when 0.5bar, output 1.4V DC; when 2.5bar, output 2.5V DC
Working pressure section	The output pressure deviation
0.0~0.3bar	＜±0.130V
0.3~0.5bar	＜±0.110V
0.5~1.0bar	when 0.5bar＜±0.110V; when 0.5＜±0.275V
1.0~3.5bar	＜±0.275V

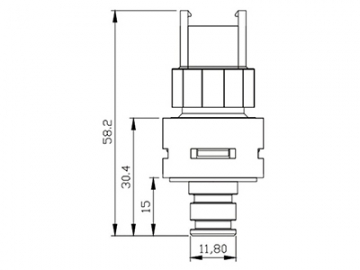

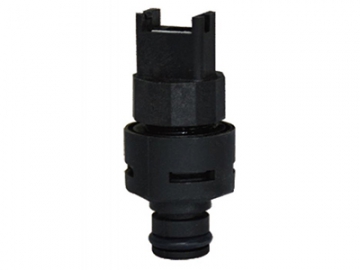

HDYL-400B-S-02 Pressure Sensor

Input voltage	5±0.2V DC
Input current	＜10mA
Working pressure	0-3.5bar; max.:4.5bar
Burst pressure	9bar
The output voltage linear measurement points	5V, 20℃
Output voltage linearity deviation	5V, 20℃
Interface	φ14 fast jack or customized according to customer requirements
when 0.5bar, output 1.4V DC; when 2.5bar, output 2.5V DC
Working pressure section	The output pressure deviation
0.0~0.3bar	＜±0.130V
0.3~0.5bar	＜±0.110V
0.5~1.0bar	when 0.5bar＜±0.110V; when 0.5＜±0.275V
1.0~3.5bar	＜±0.275V

HDYL-400B-S-03 Pressure Sensor

Input voltage	5±0.2V DC
Input current	＜10mA
Working pressure	0-3.5bar; max.:4.5bar
Burst pressure	9bar
The output voltage linear measurement points	5V, 20℃
Output voltage linearity deviation	5V, 20℃
Interface	φ14 fast jack or customized according to customer requirements
when 0.5bar, output 1.4V DC; when 2.5bar, output 2.5V DC
Working pressure section	The output pressure deviation
0.0~0.3bar	＜±0.130V
0.3~0.5bar	＜±0.110V
0.5~1.0bar	when 0.5bar＜±0.110V; when 0.5＜±0.275V
1.0~3.5bar	＜±0.275V
