Water Pressure Switch
Request a Quote

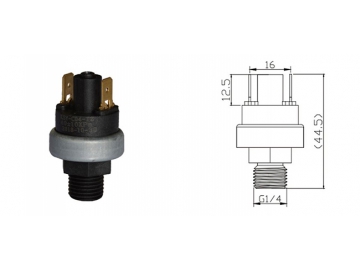

KSY-C04-01
| Action parameter | 0.4bar±0.1bar |
| Water pressure resistance | ≤0.7Mpa no leaks |
| Contact resistance | ＜100mΩ |
| Insulation resistance | ＞100mΩ/500V DC |
| Pressure | 1500V AC/50Hz/60S/0.5mA no breakdown |

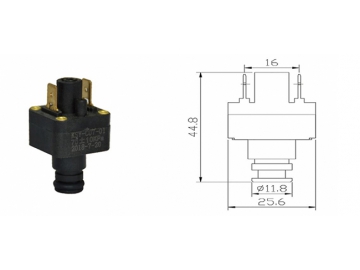

KSY-C04-02
| Action parameter | 0.4bar±0.1bar |
| Water pressure resistance | ≤0.7Mpa no leaks |
| Contact resistance | ＜100mΩ |
| Insulation resistance | ＞100mΩ/500V DC |
| Pressure | 1500V AC/50Hz/60S/0.5mA no breakdown |

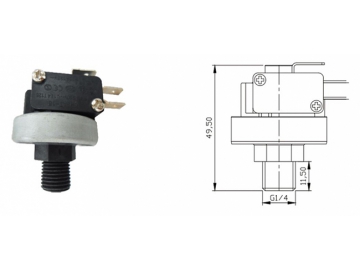

KSY-C04-10
| Action parameter | 0.4bar±0.1bar |
| Water pressure resistance | ≤0.7Mpa no leaks |
| Contact resistance | ＜100mΩ |
| Insulation resistance | ＞100mΩ/500V DC |
| Pressure | 1500V AC/50Hz/60S/0.5mA no breakdown |
KSY-C04-11
| Action parameter | 0N 0.4bar-2bar OFF min≤ ON-0.1bar, OFF max: ON-0.3bar |
| Water pressure resistance | ≤0.4Mpa no leaks |
| Contact resistance | ＜100mΩ |
| Insulation resistance | ＞100mΩ/500V DC |
| Pressure | 1500V AC/50Hz/60S/0.5mA no breakdown |
KSY-C04-12
| Action parameter | 0.4bar±0.1bar |
| Water pressure resistance | ≤0.7Mpa no leaks |
| Contact resistance | ＜100mΩ |
| Insulation resistance | ＞100mΩ/500V DC |
| Pressure | 1500V AC/50Hz/60S/0.5mA no breakdown |
KSY-C04-13
| Action parameter | 0.4bar±0.1bar |
| Water pressure resistance | ≤0.7Mpa no leaks |
| Contact resistance | ＜100mΩ |
| Insulation resistance | ＞100mΩ/500V DC |
| Pressure | 1500V AC/50Hz/60S/0.5mA no breakdown |
KSY-C04-14
| Action parameter | 0.4bar±0.1bar |
| Water pressure resistance | ≤0.7Mpa no leaks |
| Contact resistance | ＜100mΩ |
| Insulation resistance | ＞100mΩ/500V DC |
| Pressure | 1500V AC/50Hz/60S/0.5mA no breakdown |
KSY-C04-15
| Action parameter | 0.4bar±0.1bar |
| Water pressure resistance | ≤0.7Mpa no leaks |
| Contact resistance | ＜100mΩ |
| Insulation resistance | ＞100mΩ/500V DC |
| Pressure | 1500V AC/50Hz/60S/0.5mA no breakdown |
KSY-C07-01
| Action parameter | 0.4bar±0.1bar |
| Water pressure resistance | ≤0.7Mpa no leaks |
| Contact resistance | ＜100mΩ |
| Insulation resistance | ＞100mΩ/500V DC |
| Pressure | 1500V AC/50Hz/60S/0.5mA no breakdown |
KSY-C12-06
| Action parameter | 0.4bar±0.1bar |
| Water pressure resistance | ≤0.7Mpa no leaks |
| Contact resistance | ＜100mΩ |
| Insulation resistance | ＞100mΩ/500V DC |
| Pressure | 1500V AC/50Hz/60S/0.5mA no breakdown |

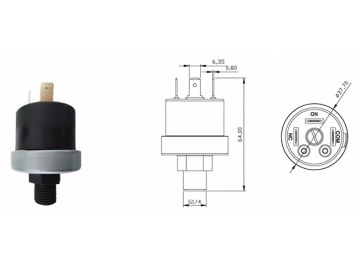

KSY-C12-08
| Action parameter | 0.4bar-2bar |
| Water pressure resistance | ≤0.7Mpa no leaks |
| Contact resistance | ＜100mΩ |
| Insulation resistance | ＞100mΩ/500V DC |
| Pressure | 1500V AC/50Hz/60S/0.5mA no breakdown |
| Port | G1/4 or G1/8 or customized |
