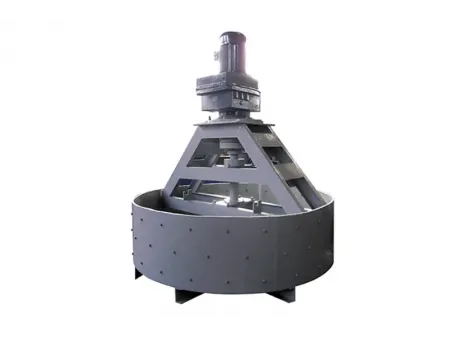

Vertical Shaft Concrete Mixer

Vertical Shaft Concrete Mixer
Vertical Shaft Concrete Mixer
Vertical Shaft Concrete Mixer
Vertical Shaft Concrete Mixer
Vertical Shaft Concrete Mixer
Request a Quote

Feature of Vertical Shaft Concrete Mixer
1. The mixing blade is composed of several groups of mixing arms, which can cover the entire mixing region and have a strong and even mixing;
2. Transmission system (including motor) is at the top of mixing tank, which is completely separated from the concrete. It facilitates disassembly and maintenance. And the horizontal-axis mixer is without plasma leakage problem at the shaft end.

Application of Vertical Shaft Concrete Mixer
This concrete equipment is suitable for mixing the dry hard concrete (Roller Compacted Concrete). So, it is widely used in the production of building blocks and prefabricated parts, and also can be used to produce of steel fiber reinforced concrete, color concrete and dry mortar, etc.

Technical Parameter of Vertical Shaft Concrete Mixer
Model JN350 JN500 JN750 JN1000 JN1500 JN2000
Discharge capacity (L) 350 500 750 1000 1500 2000
Feeding capacity (L) 560 800 1200 1600 2400 3200
Power (kW) 15 22 30 45 55 75
Cycle times per hour 50 50 50 50 50 48
Aggregate (mm) Gravel 60 60 60 60 60 60
Pebble 80 80 80 80 80 80
Overall dimension (mm) L 2050 2265 2480 2875 3140 3665
W 1750 2000 2200 2725 3014 3210
H 1750 2000 2145 2394 2537 2600
Total weight (kg) 3000 3415 3515 6615 7185 9450

Note: The above parameters are subject to change without prior notice.
