Double-Shaft Paddle Mixer
Request a Quote
Twin shaft mixer for continuous mixing of both dry bulk solids, or solids with liquids

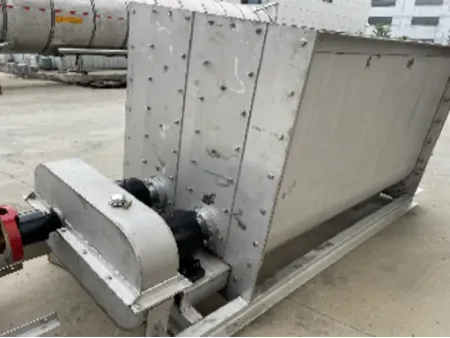

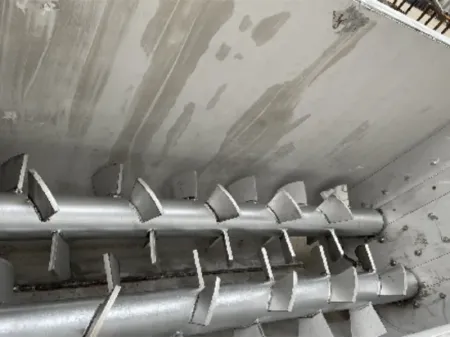

Ideal for high-capacity industrial operations, the double-shaft paddle mixer blends materials by using two synchronized rotating shafts equipped with paddles. With mixing capacities reaching up to 120 tons per hour, it ensures consistent, even mixtures with no dead zones or segregation, whether mixing powders, liquids, or sticky materials. The double shaft paddle mixing system is widely used in industries such as fertilizers, pesticides, construction materials, and metallurgy, due to its versatility and adaptability to different material consistencies. Its ability to handle both dry-to-dry and dry-to-wet mixing processes makes the double shaft paddle mixer a good choice for applications demanding precision and reliability.
Features
- The mixer features both manual and pneumatic discharge options at the bottom, offering quick material release with strong sealing capabilities.
- It requires minimal floor space and is designed with a low height, making it easy to maintain and clean.
- The paddle mixer can be customized with a paddle ribbon or double ribbon mixing structure to meet specific customer requirements.
Specifications
| Model | Paddle diameter (mm) | Paddle length (mm) | Rotation speed of main shaft (r/min) | Power (kW) | Production capacity (t/h) |
| 450 | 3000-5000 | 49 | 15 | 14-20 | |
| 500 | 3000-5000 | 49 | 18.5 | 20-25 | |
| 550 | 3000-5000 | 60 | 22 | 25-30 | |
| 600 | 3000-5000 | 60 | 37 | 45-60 |
