ZRS Helical Gear Planetary Gearbox
Request a Quote
Features
- The planetary gearbox comes with rigid tapered roller bearings at the output end, allowing for high load capacity.
- The return clearance is lower than 3 arcmin, which ensures high-precision positioning.
- Featuring high rigidity, high torque, and low noise.
- The gearbox can be equipped with servo motor from various brands, enabling it to have a wide range of applications.

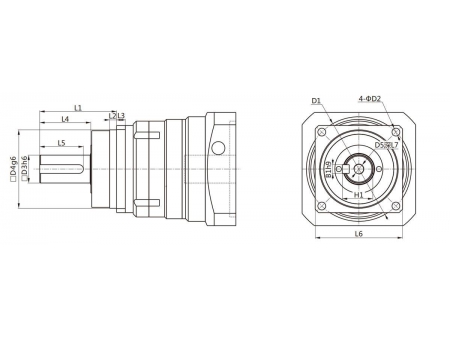

Specifications
Unit: mm
Specifications | Number of Stage | Gear Ratio | | | | | |
Rated Output Torque | N.m | 1 | 3 | 55 | 130 | 208 | 342 |
4 | 50 | 140 | 190 | 542 | |||
5 | 60 | 160 | 330 | 650 | |||
6 | 55 | 150 | 310 | 600 | |||
7 | 50 | 140 | 300 | 550 | |||
8 | 45 | 120 | 260 | 500 | |||
9 | 40 | 100 | 230 | 450 | |||
10 | 40 | 100 | 230 | 450 | |||
2 | 15 | 55 | 130 | 208 | 342 | ||
20 | 50 | 140 | 290 | 542 | |||
25 | 60 | 160 | 330 | 650 | |||
30 | 55 | 150 | 310 | 600 | |||
35 | 50 | 140 | 300 | 550 | |||
40 | 45 | 120 | 260 | 500 | |||
45 | 40 | 100 | 230 | 450 | |||
50 | 60 | 160 | 330 | 650 | |||
60 | 55 | 150 | 310 | 600 | |||
70 | 50 | 140 | 300 | 550 | |||
80 | 45 | 120 | 260 | 500 | |||
90 | 40 | 100 | 230 | 450 | |||
100 | 40 | 100 | 230 | 450 | |||
Max. Instantaneous Torque | N.M | 1,2 | 3~100 | 3 times the output torque | |||
Max. Radial Force | N | 1,2 | 3~100 | 2800 | 4900 | 7000 | 11000 |
Max. Axial Force | N | 1,2 | 3~100 | 3500 | 7500 | 9000 | 18000 |
Return Clearance | arcmin | 1 | 3~10 | ≤3 | ≤3 | ≤3 | ≤3 |
2 | 15~100 | ≤5 | ≤5 | ≤5 | ≤5 | ||
Max. Output Speed | min-1 | 1,2 | 3~100 | 4500 | 4500 | 4500 | 4500 |
Recommended Input Speed | min-1 | 1,2 | 3~100 | 3000 | 3000 | 3000 | 3000 |
Established in 1998, Zhongda has grown to become a leading high-tech enterprise in China that combines research, manufacturing, sales, and services in the sector of motor drives, micro motors, precision reducers, and integrated intelligent units. With a registered capital of 104 million Yuan, we have expanded to nine subsidiaries, employing over 1,800 dedicated individuals. In August 2017, we proudly made our mark on the main board of the Shenzhen Stock Exchange under the stock code: 002896.
