ZBF Helical Gear Planetary Gearbox Manufacturer

ZBF Helical Gear Planetary Gearbox

Request a Quote

View All: http://zd-drivers.com/7-2-6-helical-gear.html

Application

Laser Cutting Machines
Glass Edge Grinding Machines

Specifications

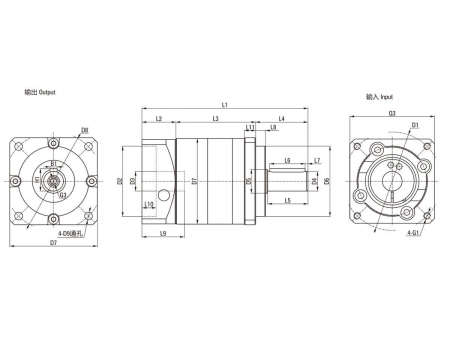

Unit: mm

Model		060	090	115	142	180	Gear Ratio	Number of Stage
Rated Output Torque	N.M	45	120	198	332	578	3	1
		40	130	280	532	1040	4
		50	150	320	650	1190	5
		40	130	290	540	1090	7
		35	110	250	490	990	8
		30	90	220	440	890	10
		45	120	198	332	578	15	2
		40	130	280	532	1040	20
		50	150	320	640	1190	25
		40	130	290	540	1190	35
		35	110	250	490	990	40
		50	150	320	640	1190	50
		45	140	300	590	1090	64
		40	130	290	540	1090	70
		35	110	250	490	990	80
		30	90	220	440	890	100
Service Life	h	20000
Instantaneous Emergency Stop Torque	N.M	2 times the rated output torque
