ZPG Helical Gear Planetary Gearbox Manufacturer

ZPG Helical Gear Planetary Gearbox

Request a Quote

View All: http://zd-drivers.com/7-2-9-helical-gear.html

Specifications

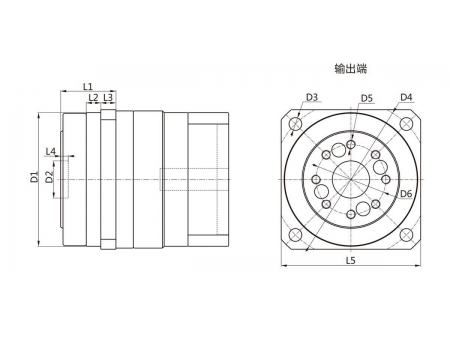

Unit: mm

Specifications		Number of Stage	Gear Ratio	20ZPG	32ZPG	50ZPG
Rated Output Torque	N. M	1	5	50	150	380
		2	11	59	160	450
			15	70	220	460
			21	78	240	490
			33	72	200	620
			45	98	280	640
Max. Instantaneous Torque	N. M	1, 2	2 times the output torque
Recommended Input Speed	rpm	1, 2	5～45	3000	3000	2000
Max. Input Speed	rpm	1, 2	5～45	6000	6000	4500
Return Clearance	arcmin	1	5	≤3	≤3	≤3
Return Clearance	arcmin	2	11～45	≤5	≤5	≤5
Service Life	h	1, 2	5～45	20000
Weight	kg	1	5	1.2	3.0	10
Weight	kg	2	11～45	1. 5	3.7	12
Working Temperature	℃	1, 2	5～45	- 10 ～ 90
Lubrication	-	1, 2	5～45	Lifetime lubrication
IP Ratings	-	1, 2	5～45	IP65
