ZDR Helical Gear Planetary Gearbox
Request a Quote
Specifications

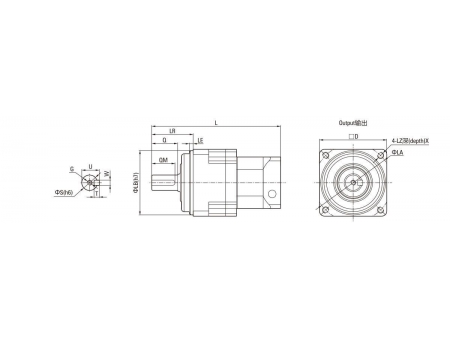

Unit: mm
| Model | Output Shaft | Flange | ||||||||||||||
| Type No. | Model | Gear Ratio | Motor Power | LR | S | Q | QM | G | WxU | T | D | LB | LE | LA | LZ | X |
| 52 | ZDR | 3-5-9 | 50 | 32 | 12 | 20 | 18 | M4(depth)12 | 4×13.5 | 4 | 52 | 50 | 3 | 60 | M5 | 12 |
| 52 | ZDR | 15-20-25-35 | 50 | |||||||||||||
| 52 | ZDR | 3-5-9 | 100 | |||||||||||||
| 52 | ZDR | 15-20-25 | 100 | |||||||||||||
| 52 | ZDR | 3-5 | 200 | |||||||||||||
| 52 | ZDR | 3 | 400 | |||||||||||||
| 78 | ZDR | 45-81 | 50 | 50 | 19 | 30 | 26 | M5(depth)15 | 6×21.5 | 6 | 80 | 70 | 3 | 90 | M6 | 20 |
| 78 | ZDR | 35 | 100 | |||||||||||||
| 78 | ZDR | 45 | 100 | |||||||||||||
| 78 | ZDR | 9 | 200 | |||||||||||||
| 78 | ZDR | 5-20-25-35 | 200 | |||||||||||||
| 78 | ZDR | 5-9 | 400 | |||||||||||||
| 78 | ZDR | 15-20-25 | 400 | |||||||||||||
| 78 | ZDR | 3-5 | 750 | |||||||||||||
