ZBR Helical Gear Planetary Gearbox
Request a Quote
Specifications

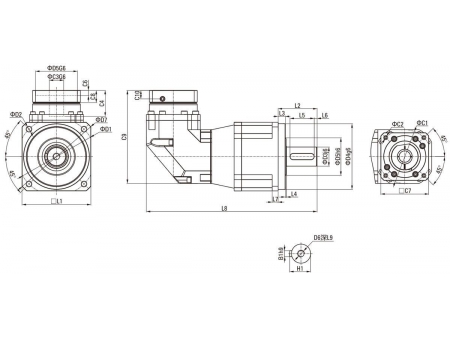

Unit: mm
| Dimension | 090ZBR | 115ZBR | 142ZBR | 180ZBR | 180ZBR |
| D1 | 100 | 130 | 165 | 215 | 250 |
| D2 | 6.6 | 9 | 11 | 13 | 17 |
| D3 | 22 | 32 | 40 | 55 | 75 |
| D4 | 80 | 110 | 130 | 160 | 180 |
| D5 | 65 | 95 | 75 | 95 | 115 |
| D6 | M8×1.25P | M12×1.75P | M16×2P | M20×2.5P | M20×2.5P |
| D7 | 116 | 152 | 185 | 240 | 292 |
| L1 | 90 | 115 | 142 | 180 | 220 |
| L2 | 48 | 65 | 97 | 105 | 138 |
| L3 | 10 | 12 | 15 | 20 | 30 |
| L4 | 1.5 | 2 | 3 | 3 | 3 |
| L5 | 32 | 40 | 63 | 70 | 90 |
| L6 | 3 | 5 | 5 | 6 | 7 |
| L7 | 8 | 10 | 12 | 15 | 20 |
Established in 1998, Zhongda has grown to become a leading high-tech enterprise in China that combines research, manufacturing, sales, and services in the sector of motor drives, micro motors, precision reducers, and integrated intelligent units. With a registered capital of 104 million Yuan, we have expanded to nine subsidiaries, employing over 1,800 dedicated individuals. In August 2017, we proudly made our mark on the main board of the Shenzhen Stock Exchange under the stock code: 002896.
