ZB Helical Gear Planetary Gearbox Manufacturer

ZB Helical Gear Planetary Gearbox

Request a Quote

View All: http://zd-drivers.com/7-2-4-helical-gear.html

Application

Specialized Gearboxes For AGV Carts

Laser Cutting Machines

Circular Guide Rail Equipment

Flying Saws

Bending Machines

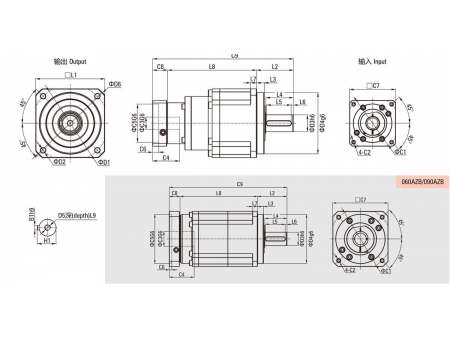

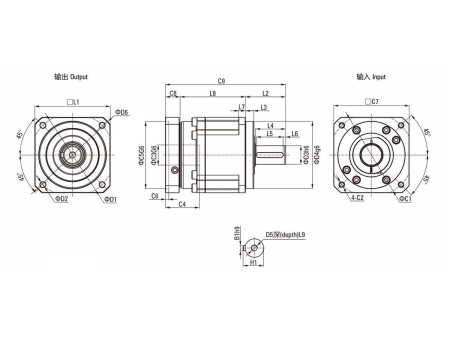

Specifications

Unit: mm

Dimension	042ZB	060ZB	090ZB	115ZB	142ZB	180ZB	220ZB
D1	50	70	100	130	165	215	250
D2	3.4	5.5	6.6	9	11	13	17
D3	13	16	22	32	40	55	75
D4	35	50	80	110	130	160	180
D5	M4×0.7P	M5×0.8P	M8×1.25P	M12×1.75P	M16×2P	M20×2.5P	M20×2.5P
D6	56	80	116	152	185	240	292
L1	42	60	90	115	142	180	220
L2	26	37	48	65	97	105	138
L3	5.5	7	10	12	15	20	30
L4	1	28	35.5	51	79	82	105
L5	16	25	32	40	70	70	90
L6	2	2	2	5	4	6	7
L7	4	6	8	10	15	20	25
L8	58.5	102.5	116	126	169.5	207.5	215

Established in 1998, Zhongda has grown to become a leading high-tech enterprise in China that combines research, manufacturing, sales, and services in the sector of motor drives, micro motors, precision reducers, and integrated intelligent units. With a registered capital of 104 million Yuan, we have expanded to nine subsidiaries, employing over 1,800 dedicated individuals. In August 2017, we proudly made our mark on the main board of the Shenzhen Stock Exchange under the stock code: 002896.
