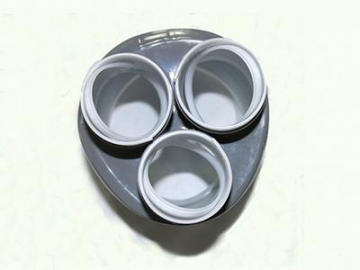

Cold Shrink Breakout Boot for Power Cable up to 15kV
Request a Quote
Dasite offesr 10kV cold shrinkable branch tubes for three core cables. They are made of silicon rubber and disposed through a pre-expansion. During usage, simply remove the plastic support inside the sleeve, and the sleeve will automatically shrink to protect the cable branch. Silicon rubber offers an excellent insulation, water resistance and high temperature resistance, making it applicable for a variety of cross-linked cables or oil-immersed cables with a voltage range of 6 to 15kV.
Optional type| Specification | Cross sectional area of applicable cable (mm2) | Diameter before shrinking | |
| Small branch | Large branch | ||
| 10kv3.1 | 25-50 | 34 | 83 |
| 10kv3.2 | 70-120 | 39 | 95 |
| 10kv3.3 | 150-240 | 42 | 106 |
| 10kv3.4 | 300-400 | 52 | 120 |
